Skylights
Sentry 3 WLS

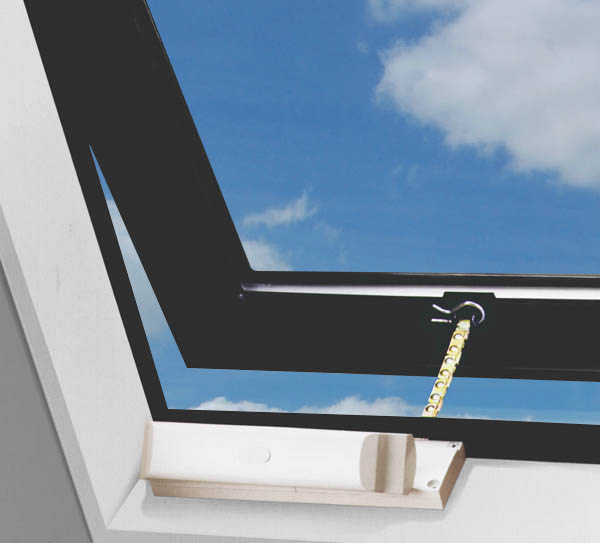

This Sentry 3 WLS system truly takes over where our Sentry® II WLS left off.
A sleek design and quiet motor are engineered into this exciting digitally motorized system. The Sentry 3 WLS (window & light skylights) system can be used on casement and awning operators and/or manual skylight operators.

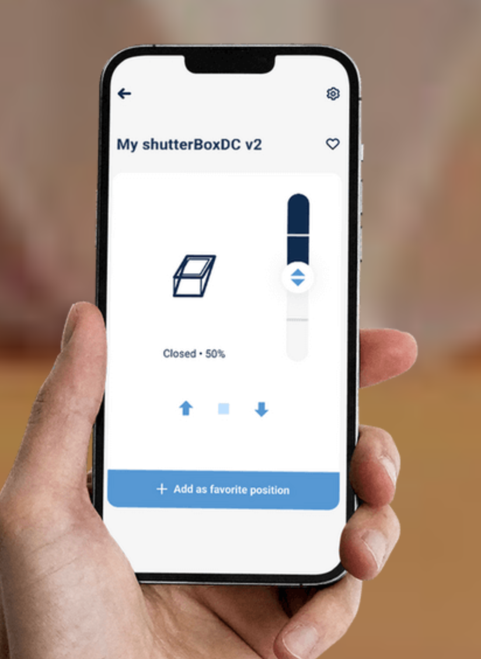

The Sentry 3 WLS utilizes a WiFi enabled controller which connects to any smart device via a downloadable application. This allows convenient operation from virtually anywhere.
PRODUCT HIGHLIGHTS
• Recommended for: aluminum, composite, vinyl, and wood
• Utilized on casement/awning windows and manual light skylights.
• Power conversion built right into the wall mounted control package - no more transformers to complicate and add expense to the installation

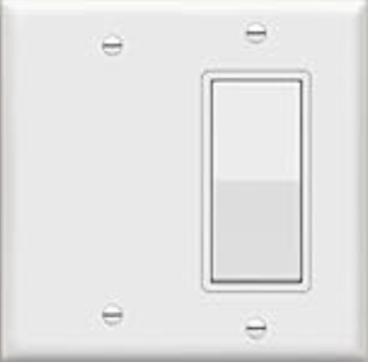

• Sentry 3 WLS utilizes both a wall switch and a WiFi enabled controller which connects to any smart phone via a downloadable application. This allows convenient operation from virtually anywhere.
• Electronics package fits a standard double gang enclosure
• The WLS motor is unchanged and uses the same wiring methods as previous Sentry II models. Sentry 3 WLS motor covers remain unchanged
• Power Protected Memory eliminates the need to “reset” or retrain the motor after a power outage.
• The kit includes the controller and the power supply which converts 110vac to 24vac, and a Decora style wall switch.
• Optional rain sensor sold separately (Part # 2031785 - for Sentry 3 only). The new rain sensor is Wi-Fi connected. With the use of the downloadable app, one rain sensor can be programmed to control multiple Sentry 3 motors requiring only one rain sensor per location.
Specifications (View full specifications in Excel or PDF )
| Part # | Description | Series | Model | Mount Type |
|---|---|---|---|---|
| 2031785 | RAIN SENSOR, SENTRY 3 | SENTRY 3 | SENTRY 3 WLS | |
| 2032127 | OPER, SENTRY 3 WLS .00 | SENTRY 3 | SENTRY 3 WLS | Sill |
| 2109952 | COVER, WINDOW OPERATOR | SENTRY 3 | SENTRY 3 WLS | Sill |
| 2109953 | COVER, WINDOW OPERATOR | SENTRY 3 | SENTRY 3 WLS | Sill |
| 2109954 | COVER, WINDOW OPERATOR | SENTRY 3 | SENTRY 3 WLS | Sill |
| 2109955 | COVER, WINDOW OPERATOR | SENTRY 3 | SENTRY 3 WLS | Sill |
| 2109956 | COVER, WINDOW OPERATOR | SENTRY 3 | SENTRY 3 WLS | Sill |
| 2109957 | COVER, WINDOW OPERATOR | SENTRY 3 | SENTRY 3 WLS | Sill |
| 2109958 | COVER, WINDOW OPERATOR | SENTRY 3 | SENTRY 3 WLS | Sill |
| 2109959 | COVER, WINDOW OPERATOR | SENTRY 3 | SENTRY 3 WLS | Sill |
| 2109961 | COVER, WINDOW OPERATOR | SENTRY 3 | SENTRY 3 WLS | Sill |
