Reach: 0.460"
52020
Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.
This product features our embossed polyethylene jacket which provides great co-efficient of friction properties and allows for easy compression and great recovery.
product highlights

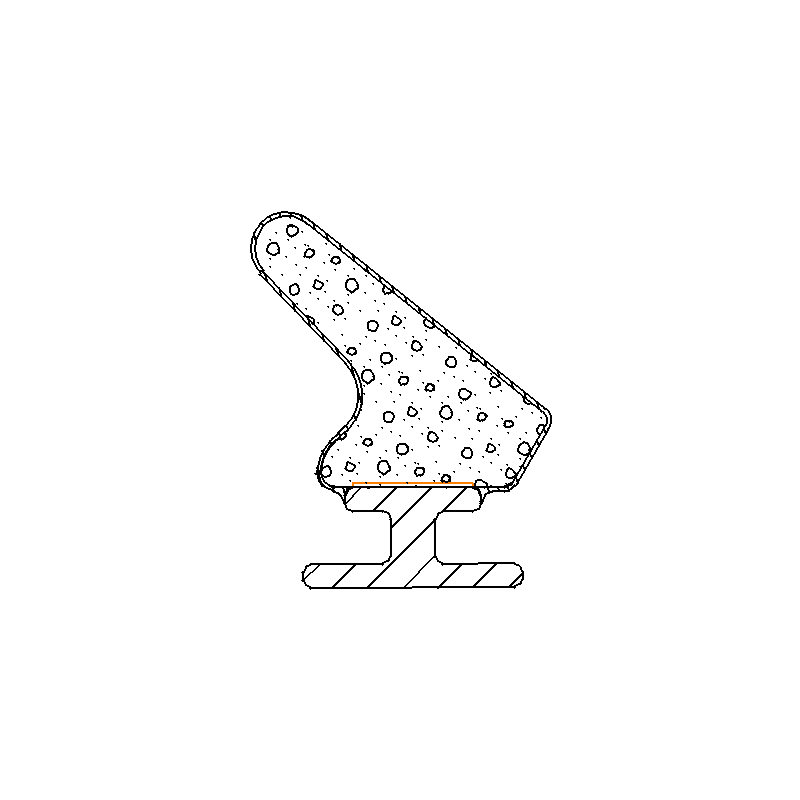

- Overall Height: .470" (11.94mm)
- Bulb Height: .345" (8.76mm)
- Bulb Width: .376" (9.55mm)
- Base Width: .275" (6.99mm)
Specifications
| Part # | Box Quantity | Cut Length | Recommended Opening | Reach | Backing / Kerf Width |
|---|---|---|---|---|---|
| 52020112091000 | 2,000' | Reeled | 0.310" | 0.460" | 0.275" |
| 52020112591000 | 2,000' | Reeled | 0.310" | 0.460" | 0.275" |
Blacks
Tans
