Reach: 0.375"
12289

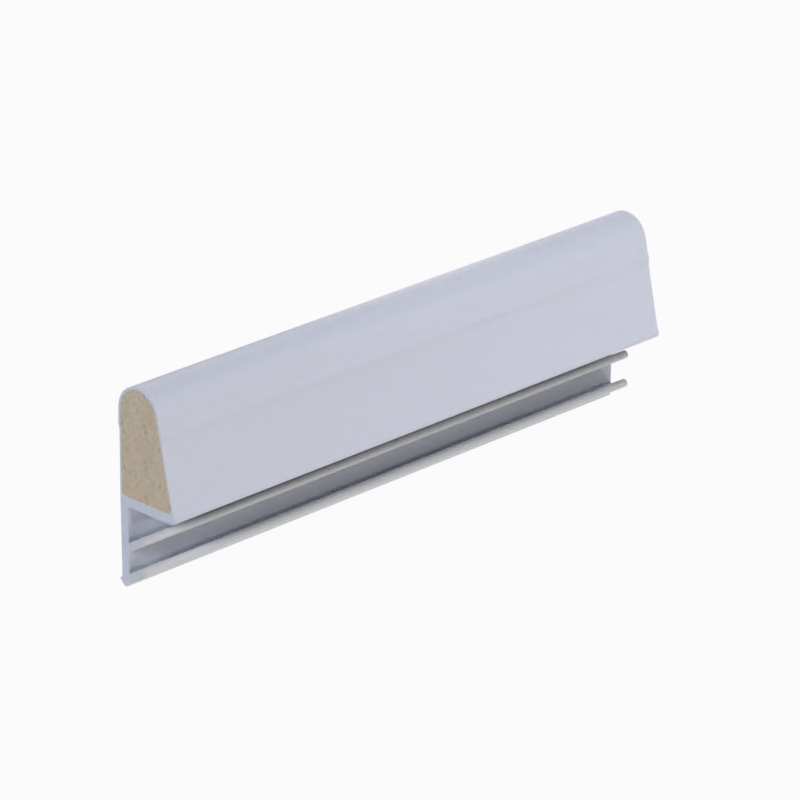

Featuring low compression load deflection, the CladFT and its unique profile construction allow the high quailty Polyethylene cladding liner to release from the foam which results in an easier to compress profile leading to a tight fit every time.
Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.
product highlights
- Overall Reach: .375" (9.53mm)
- Bulb Width: .225" (5.72mm)
- Kerf Depth: .250" (6.35mm)
- Kerf Width: .100" (2.54mm)
Specifications
| Part # | Box Quantity | Cut Length | Recommended Opening | Reach | Backing / Kerf Width |
|---|---|---|---|---|---|
| 12289111691000 | 2,000' | Reeled | 0.080" | 0.375" | 0.100" |
| 12289112191000 | 2,000' | Reeled | 0.080" | 0.375" | 0.100" |
| 12289114191000 | 2,000' | Reeled | 0.080" | 0.375" | 0.100" |
Browns
Tans
Whites
