Cam Locks ZX92 Series

Locks

Cam Locks ZX92 Series

The ZX92 features an innovative spring design, which holds the handle in both the locked and unlocked positions. The handle clearly indicates when the cam has completed its travel.

Product Highlights

  • Recommended for:  aluminum, composite, vinyl, and wood
  • All zinc die-cast sash lock construction for maximum strength
  • Spring holds the handle in locked positions providing feedback when the window is locked or unlocked


Specifications

Part # Handing Color Code Color Name Hole Backset
2003133 Left Hand KH1 White 0.383"
2003134 Right Hand KH1 White 0.383"
2003135 Left Hand CT Almond 0.39"
2003136 Right Hand CT Almond 0.437"
2003139 Left Hand KH1 White 0.57"
2003140 Right Hand KH1 White 0.57"
2003141 Left Hand CT Almond 0.437"
2003142 Right Hand CT Almond 0.437"
2007413 Left Hand KH1 White 0.69"
2007414 Left Hand CT Almond 0.437"
Click an image below to view a larger version
*Efforts have been made to accurately display colors but they may vary based on screen settings.

Tans

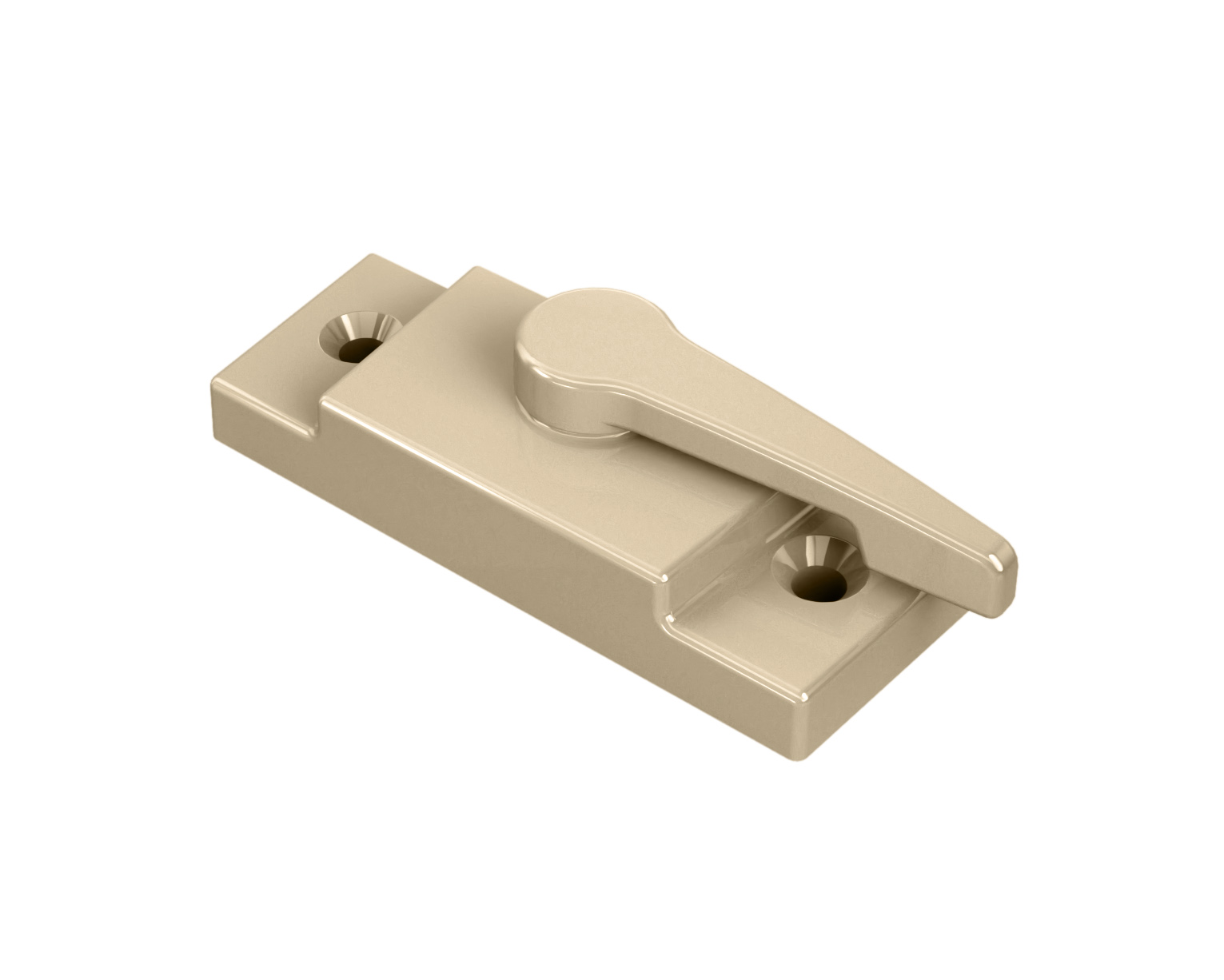

Almond
Almond

Whites

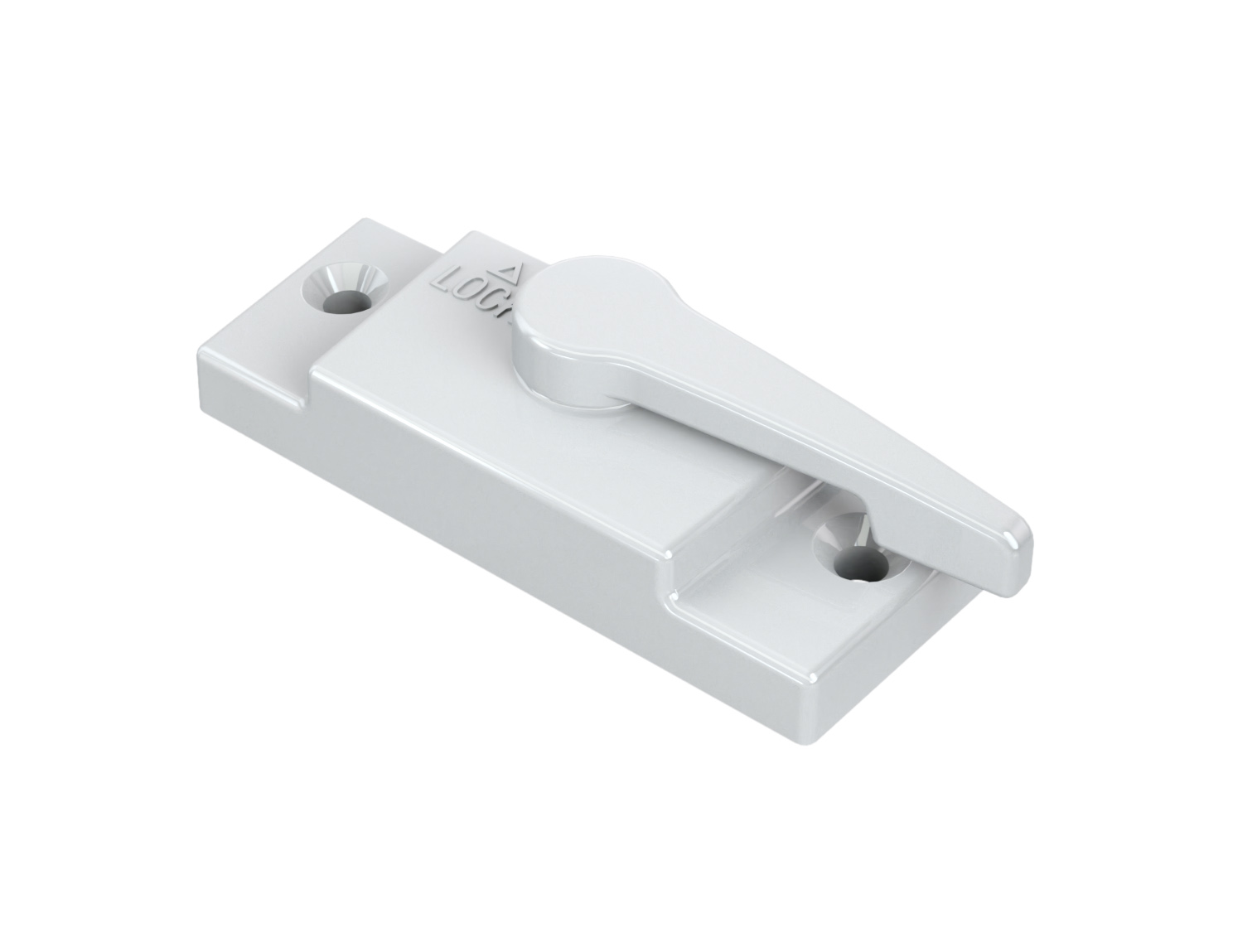

White
White
