Locks
Contour®
The Contour multi-point locking system for commercial aluminum windows, is attractive, easy to operate, and is high performing. The best value in commercial casement and awning window locking hardware.??
The Contour™ lock maintains a longer handle and is cleverly designed to meet ADA requirements. Increased travel allows up to 5 lock points on casement sash sizes ranging up to 102" (2,591 mm) tall.
Product Highlights
•Non-handed lock improves clearance for easy screen removal.
•Longer more robust handle helps meet ADA requirements
•Casement lock points capable of resisting up to 350 lbs. per lock point and 450 lbs. for awning lock points
•DP 100 capable on gateway size (36" x 60")
•Sequential locking reduces locking effort on larger sash sizes
•Custom designed, profile specific tie bar guides and keepers offer maximum hardware application flexibility
•Integrated gasket minimizes the opportunity for air, water, light, and insect intrusion
Specifications
| Part # | Color Name | Series | Window Substrate | Mount Type |
|---|---|---|---|---|
| 2117091 | Faux Bronze | 24 | Aluminum PVC Comp | Rear Mount |

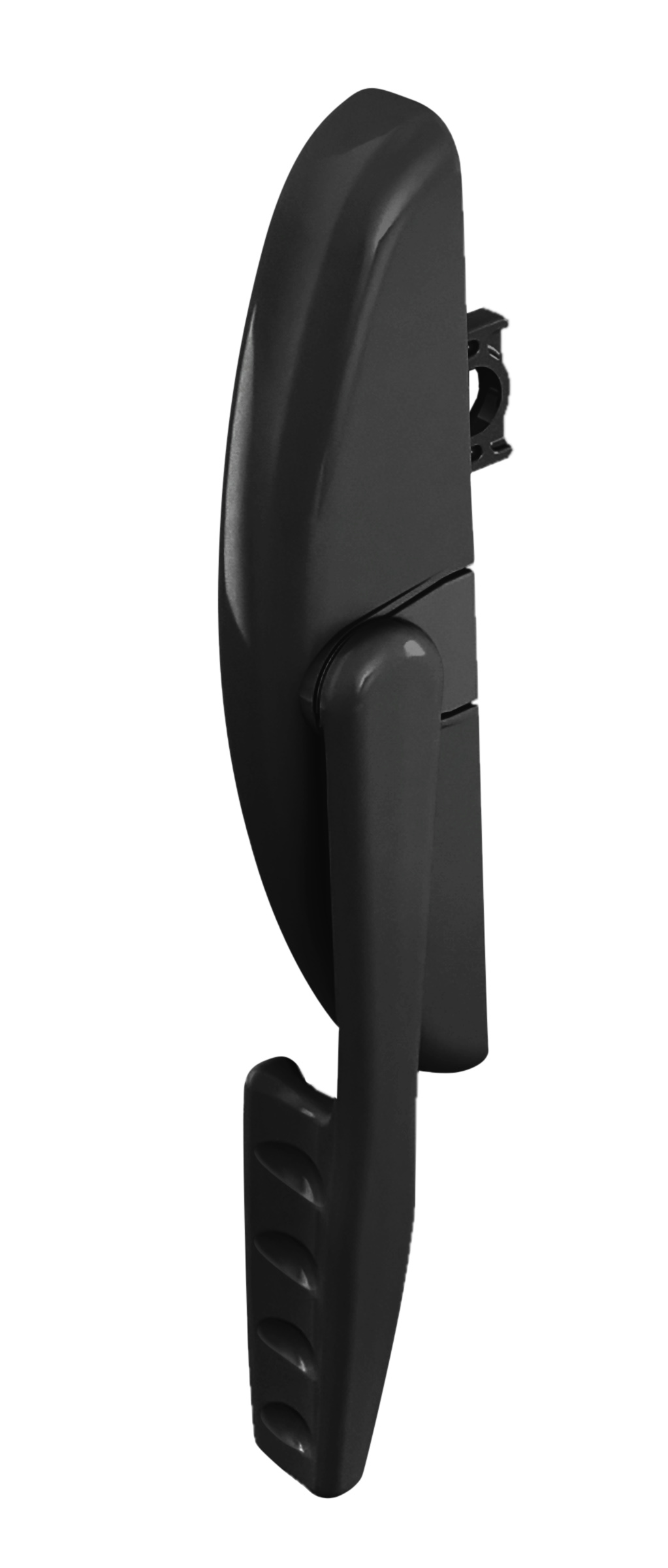

| 2117093 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 2117094 | Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 2117095 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 2117096 | 13 | 24 | Aluminum PVC Comp | Rear Mount |
| 2117097 | Antique Brass | 24 | Aluminum PVC Comp | Rear Mount |
| 2117098 | 2A | 24 | Aluminum PVC Comp | Rear Mount |
| 2117099 | Beige | 24 | Aluminum PVC Comp | Rear Mount |
| 2117100 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 2117101 | Sahara Beige | 24 | Aluminum PVC Comp | Rear Mount |

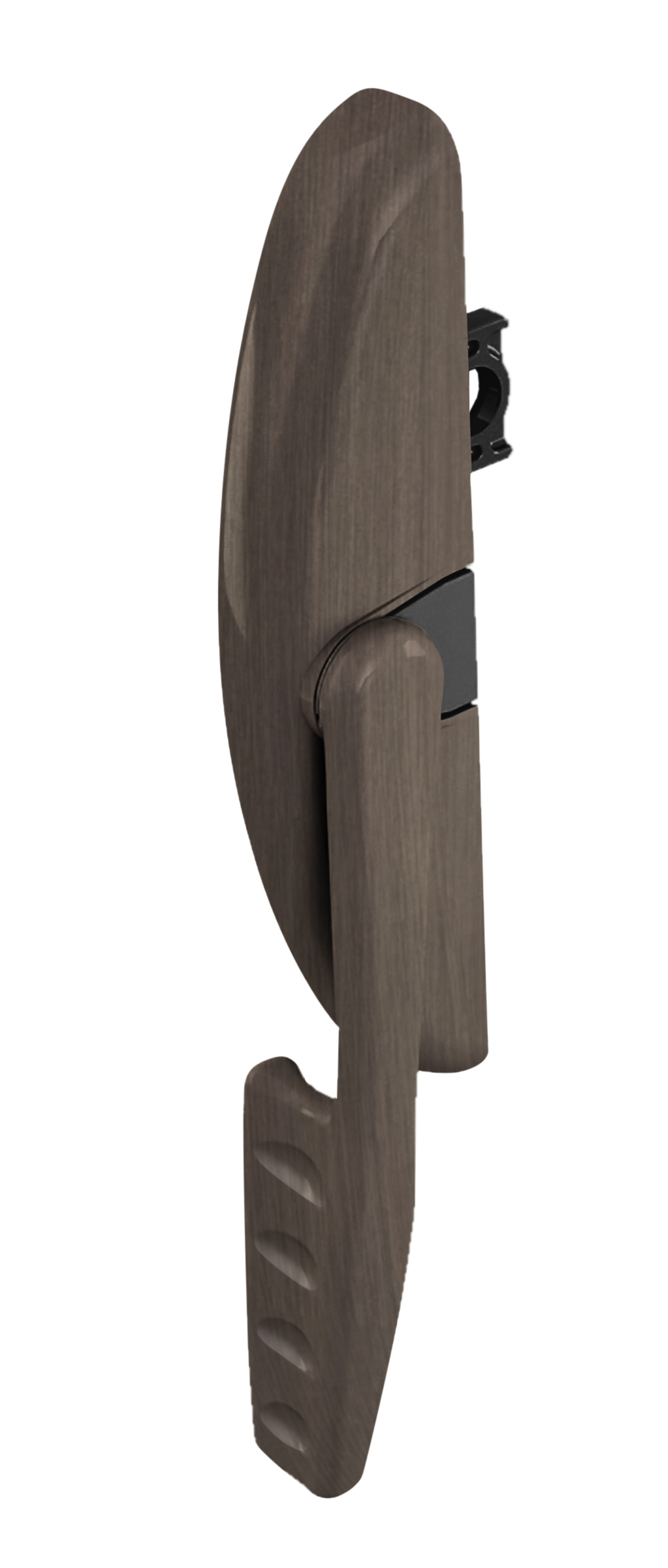

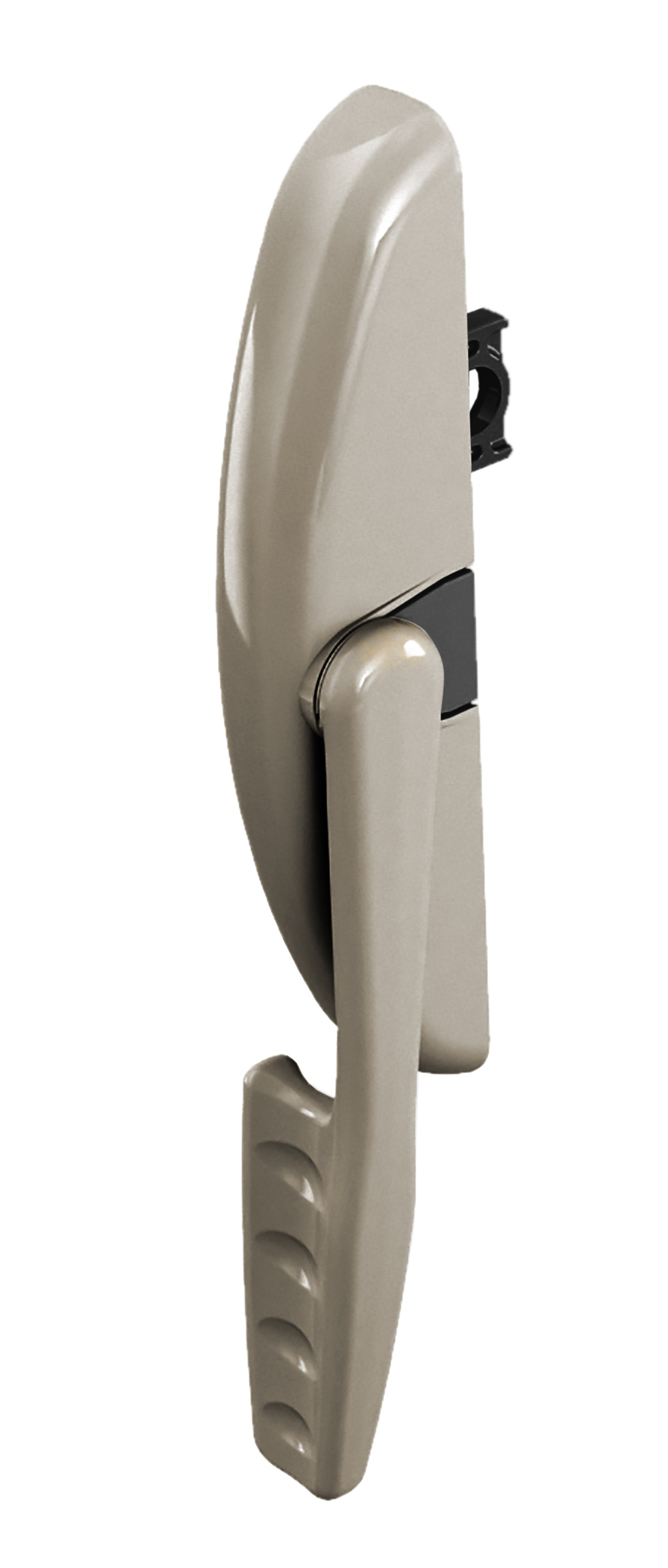

| 2117102 | Oil Rubbed Bronze | 24 | Aluminum PVC Comp | Rear Mount |

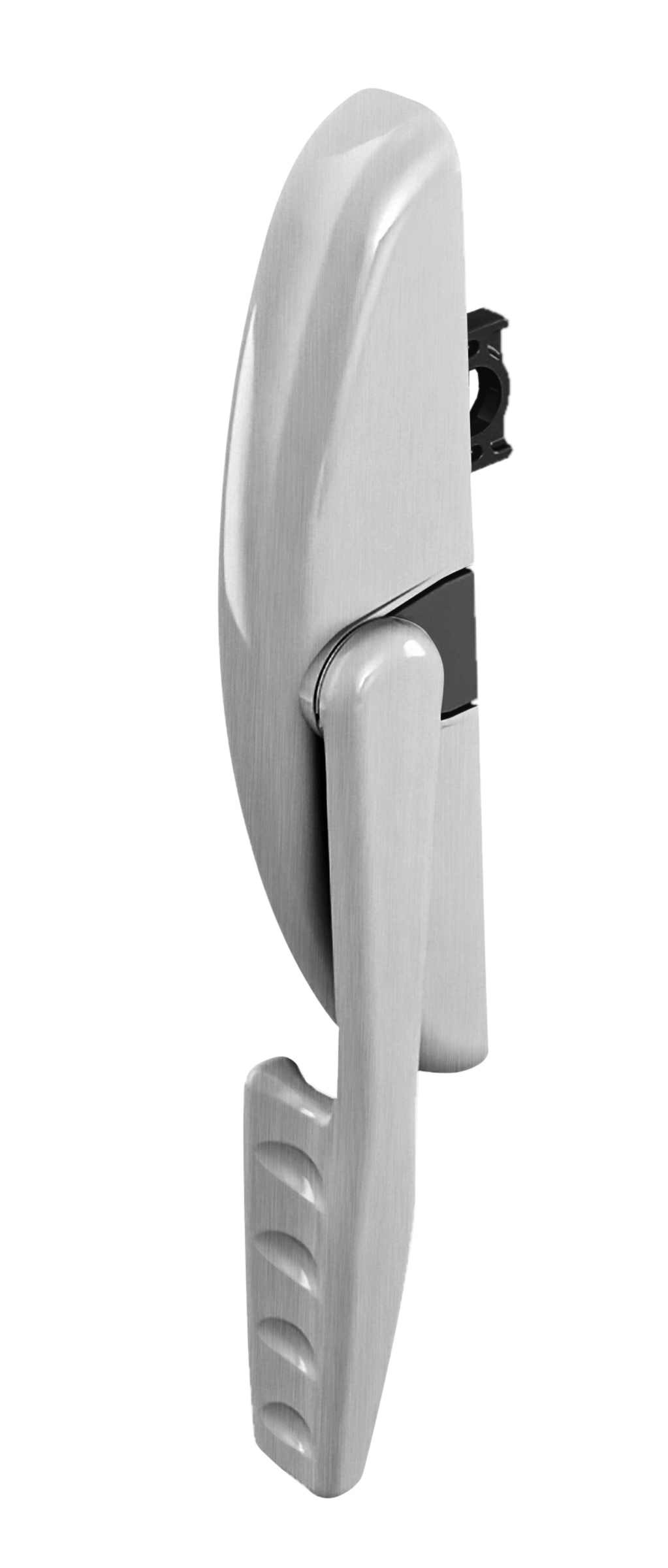

| 2117103 | Satin Chrome | 24 | Aluminum PVC Comp | Rear Mount |
| 2117105 | Faux Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 2117106 | Aluminum | 24 | Aluminum PVC Comp | Rear Mount |
| 2117107 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 2117108 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 2117110 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 2117111 | 69 | 24 | Aluminum PVC Comp | Rear Mount |
| 2117113 | Faux Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 2117114 | Faux Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 2117115 | Aluminum | 24 | Aluminum PVC Comp | Rear Mount |
| 2117116 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 2117117 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 2117120 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 2117121 | Bright White | 24 | Aluminum PVC Comp | Rear Mount |
| 2117125 | Aluminum | 24 | Aluminum PVC Comp | Rear Mount |
| 2117127 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 2117128 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 2117131 | Faux Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 2117134 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 2117135 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |

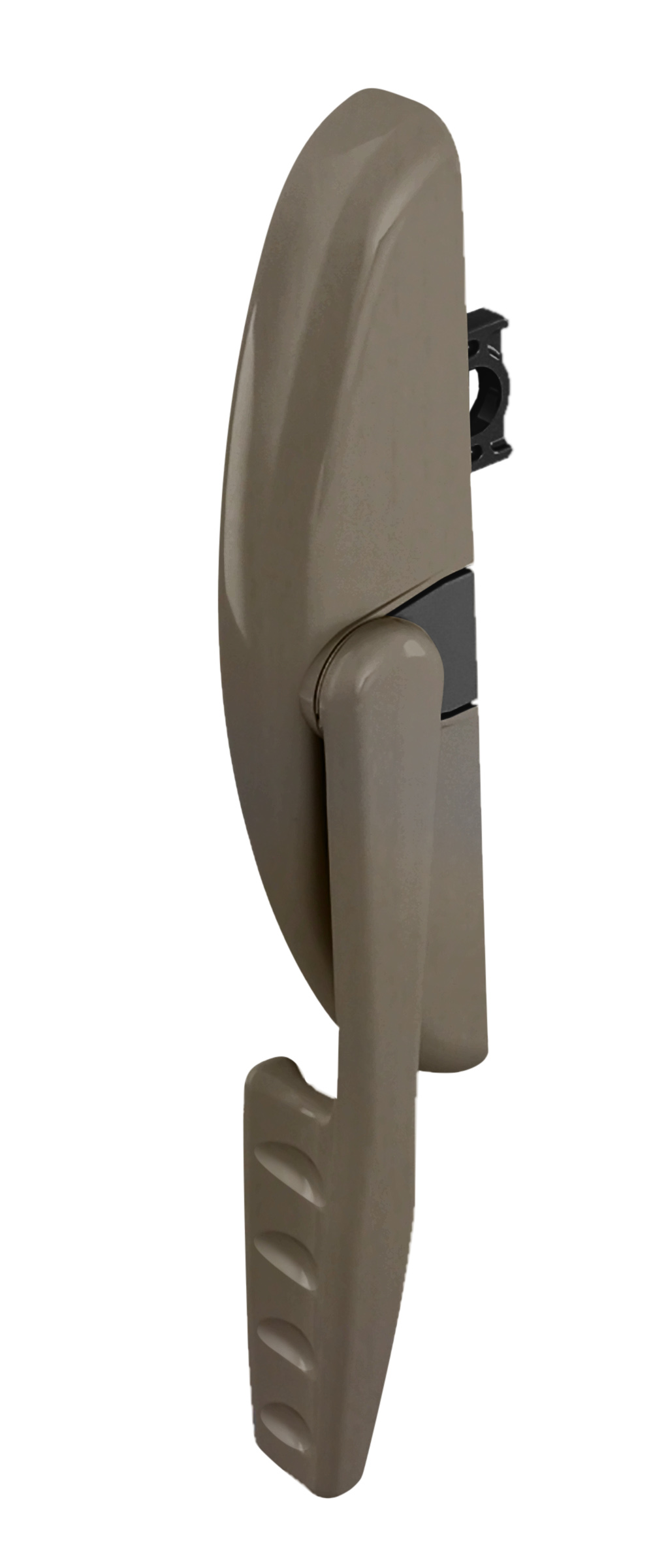

| 2117136 | Chestnut Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 2117138 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 2117143 | Faux Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 2117144 | Faux Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 2117145 | Aluminum | 24 | Aluminum PVC Comp | Rear Mount |
| 2117146 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 2117149 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 2117151 | Sahara Beige | 24 | Aluminum PVC Comp | Rear Mount |
| 2117152 | Snow White | 24 | Aluminum PVC Comp | Rear Mount |
| 2117153 | Bright White | 24 | Aluminum PVC Comp | Rear Mount |
Click an image below to view a larger version
*Efforts have been made to accurately display colors but they may vary based on screen settings.
Blacks

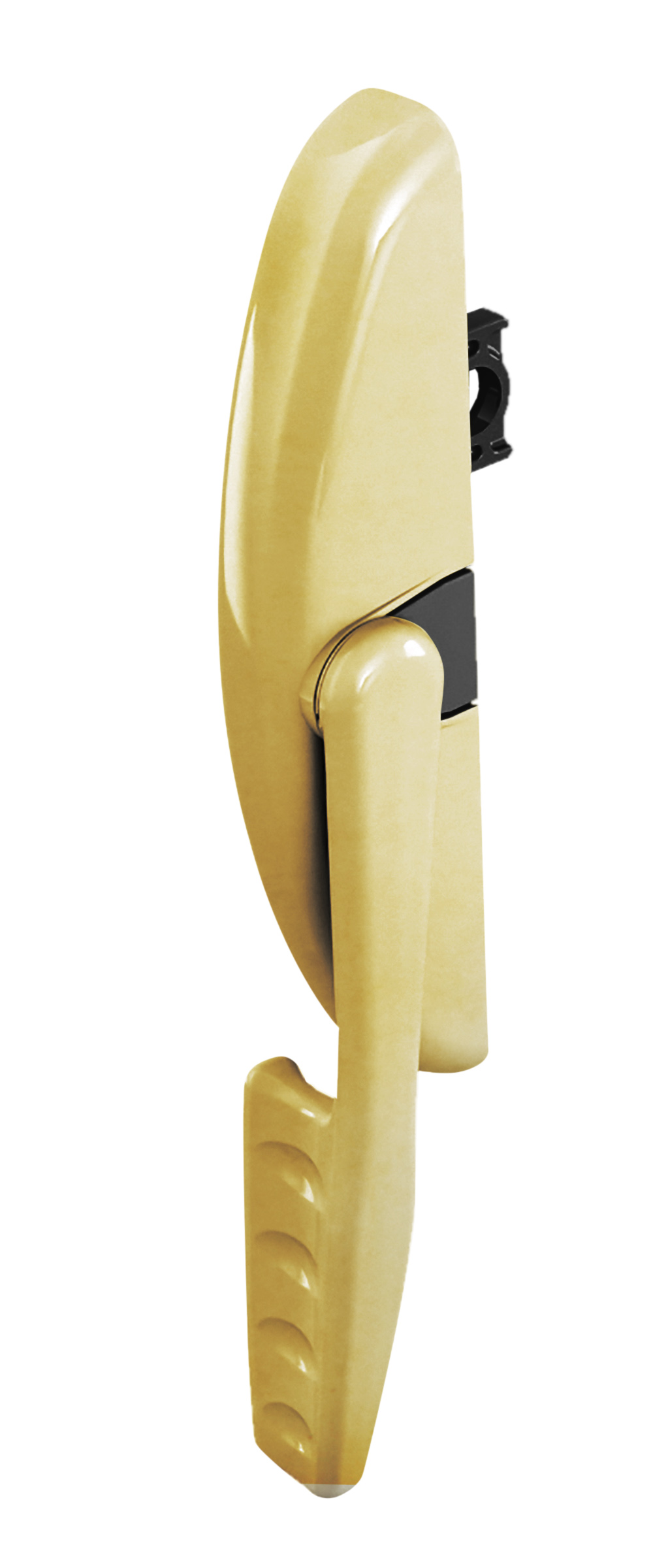

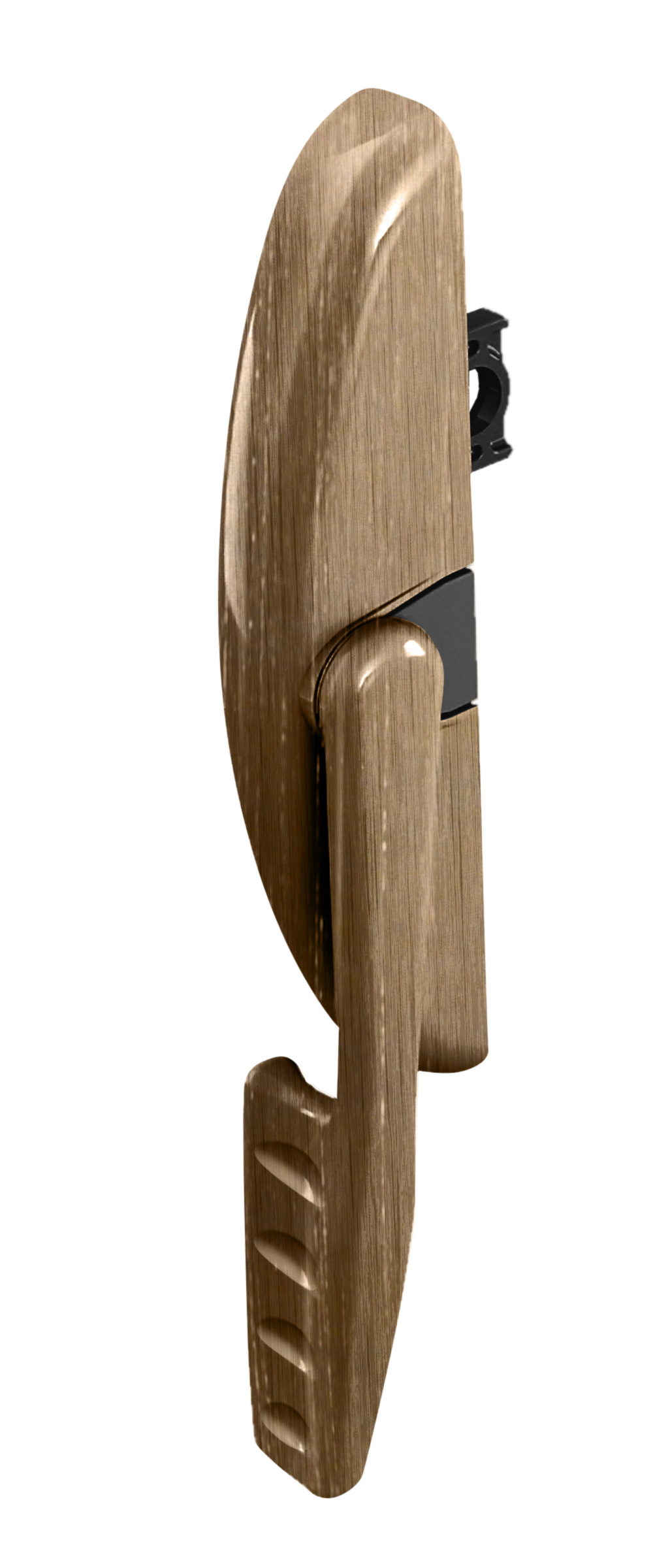

Brasses
Browns
Chromes

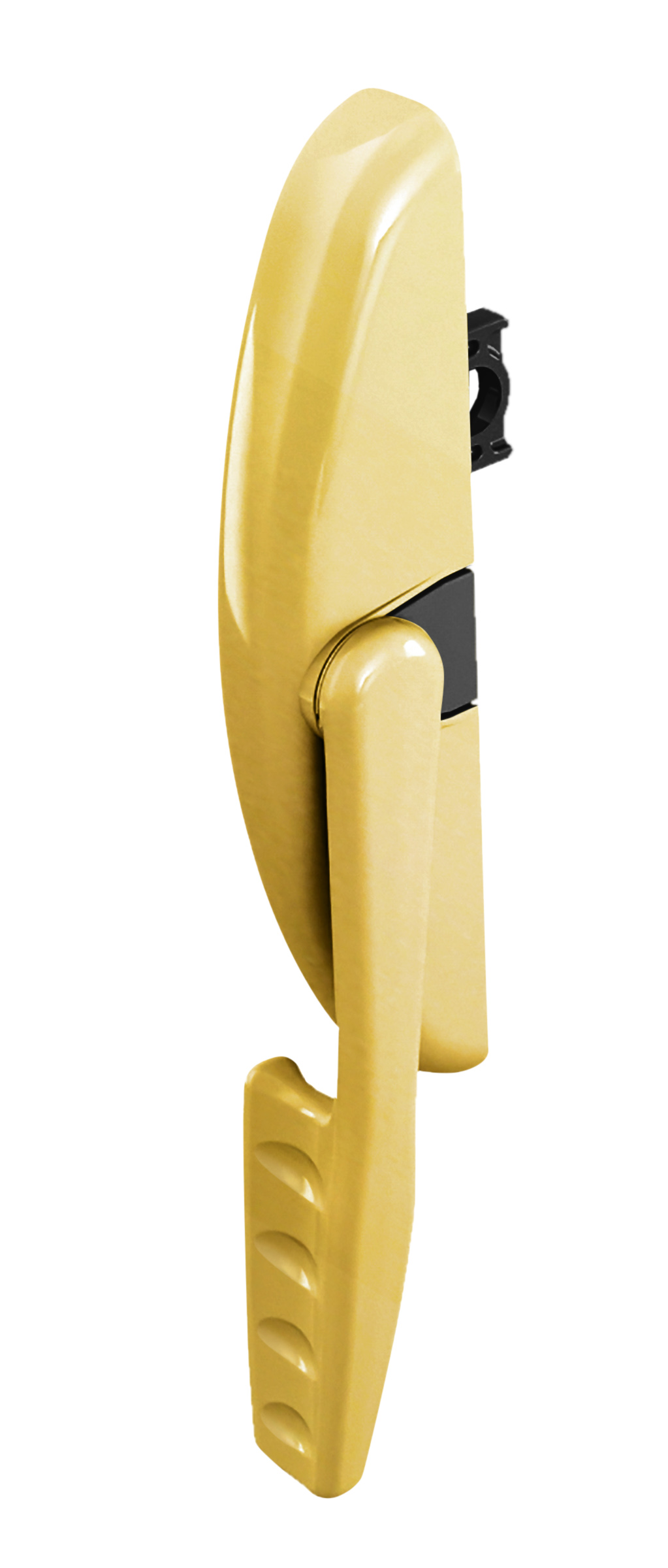

Golds
Greys

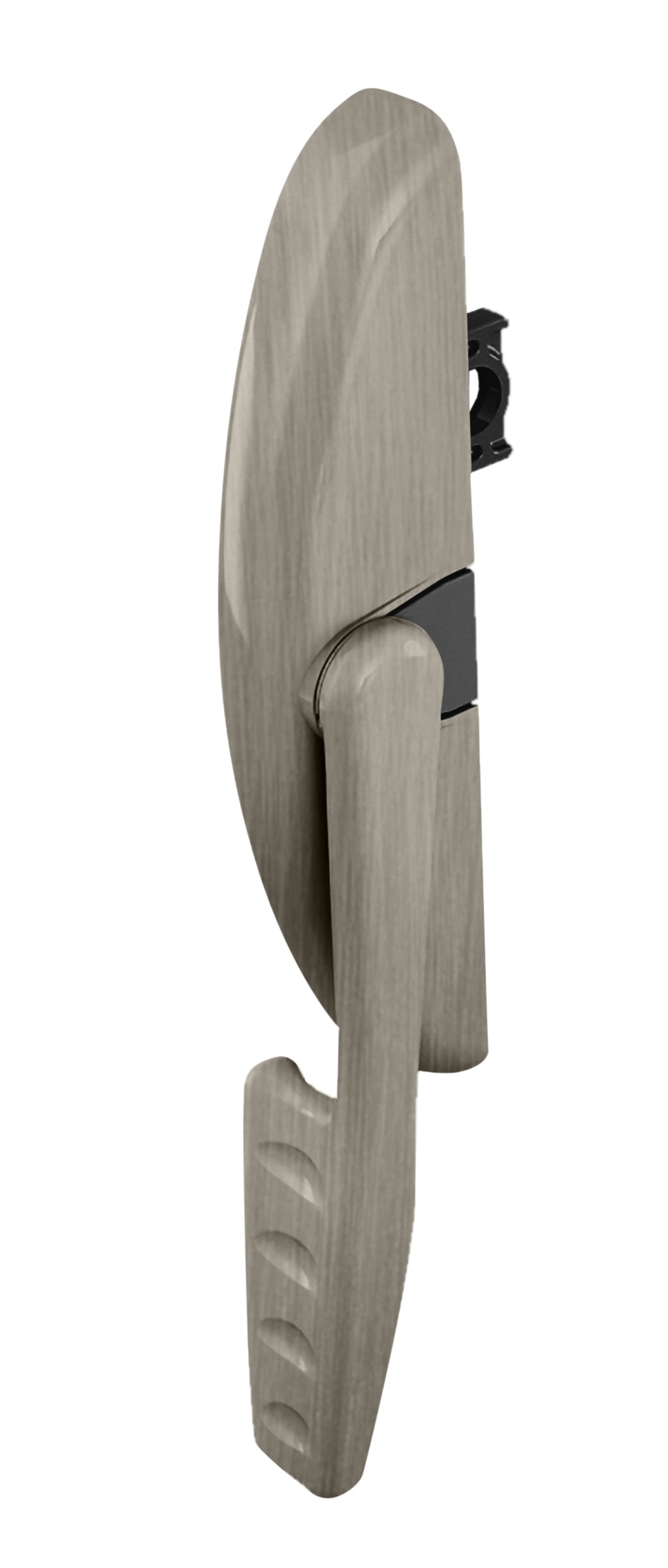

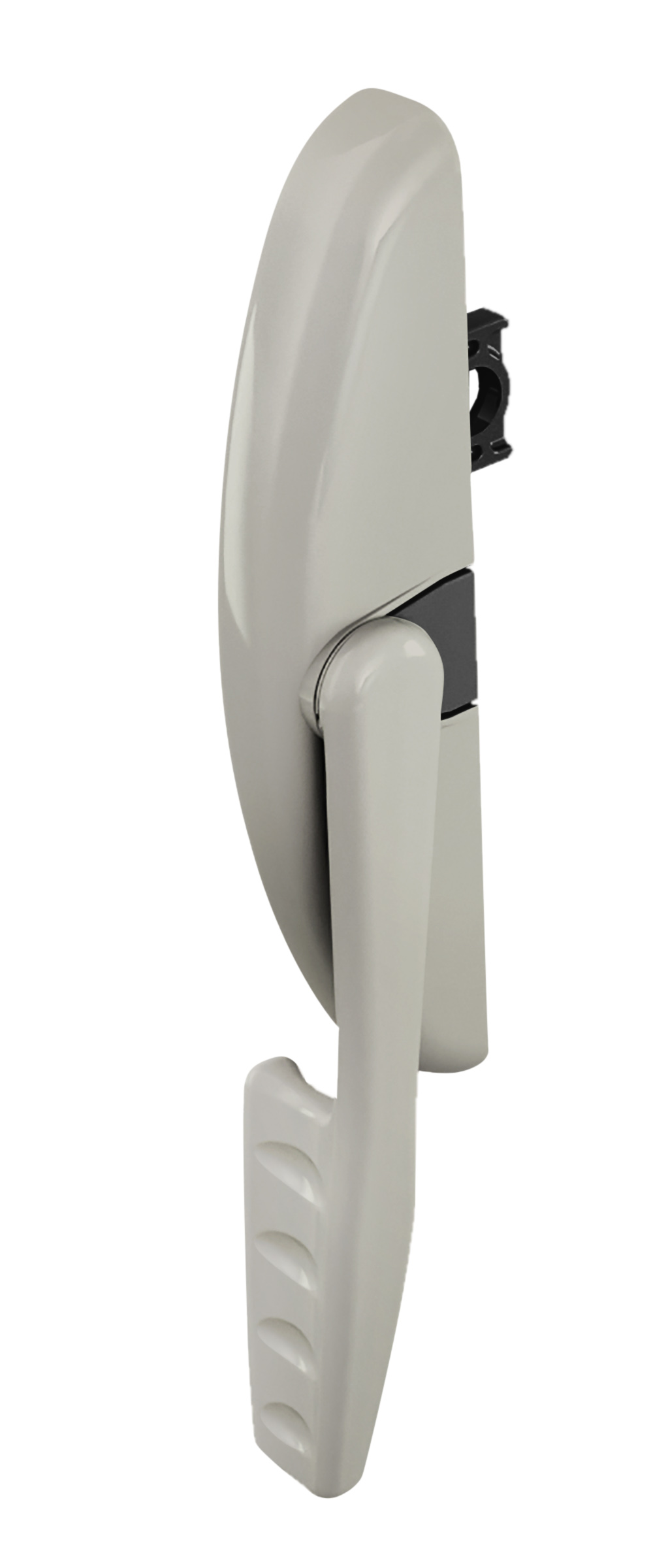

Nickels
Oil Rubbed Bronzes

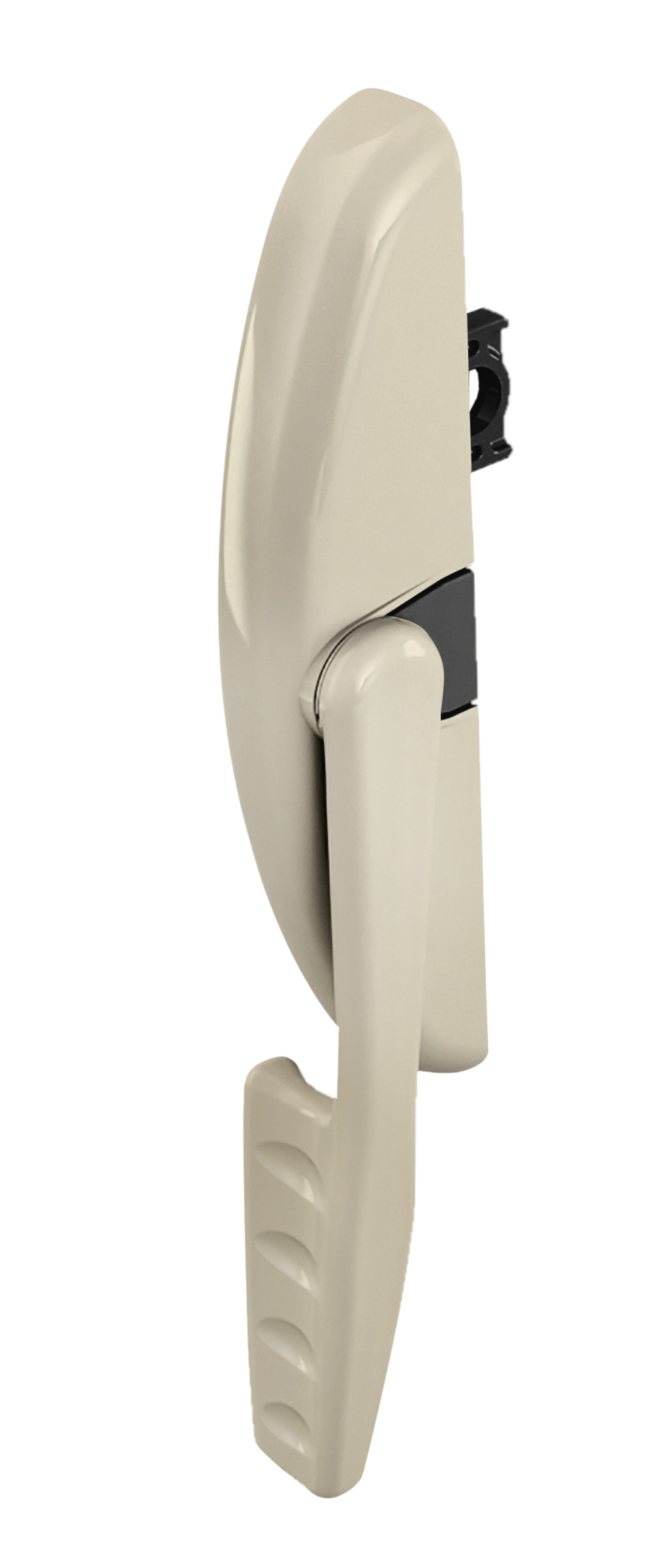

Tans

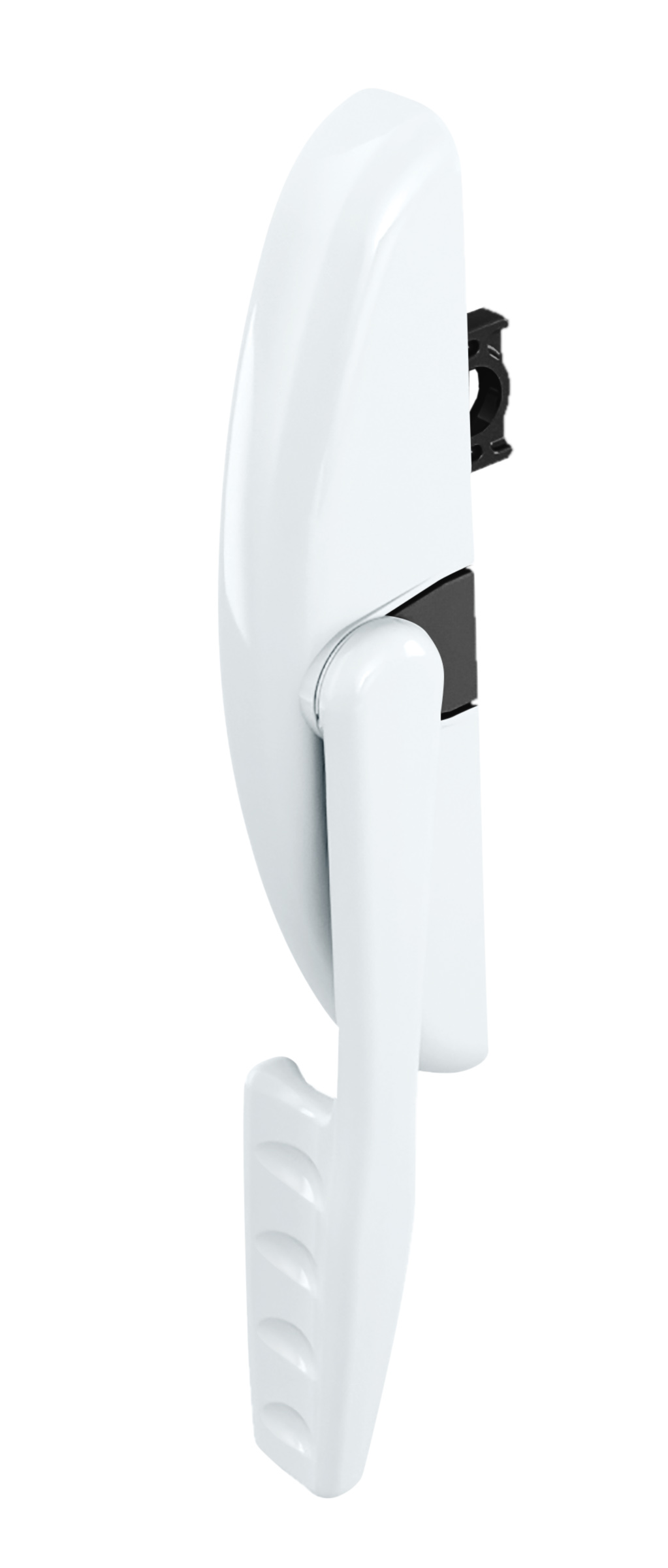

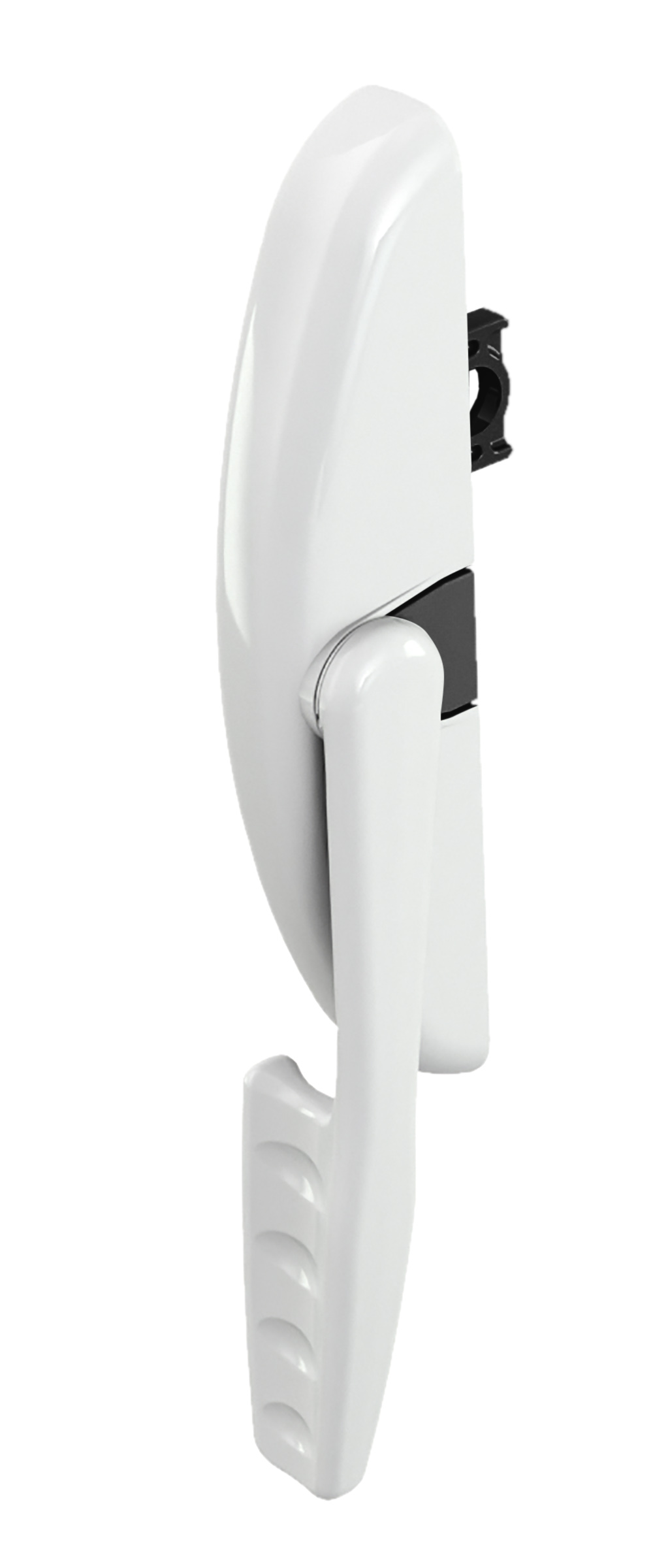

Whites
AT Contour Lock Sales Sheet
AT Tips and Specs Contour
AT WCA 24.45.XX.001 Contour
AT WCA 24.50.XX.001 Contour
AT WCA 24.51.XX.001 Contour
AT WCA 24.54.XX.001 Contour
AT WCA APPLICATION Contour Single Point Locking Awning
AT WCA APPLICATION Contour Single Point LP Locking Awning
AT WCA APPLICATION Generic Aluminum Contour Lock
AT WCA APPLICATION Generic Awning Contour Lock
Contour Lock Catalog
Euro Groove Contour Locking
