Locks
24 Series

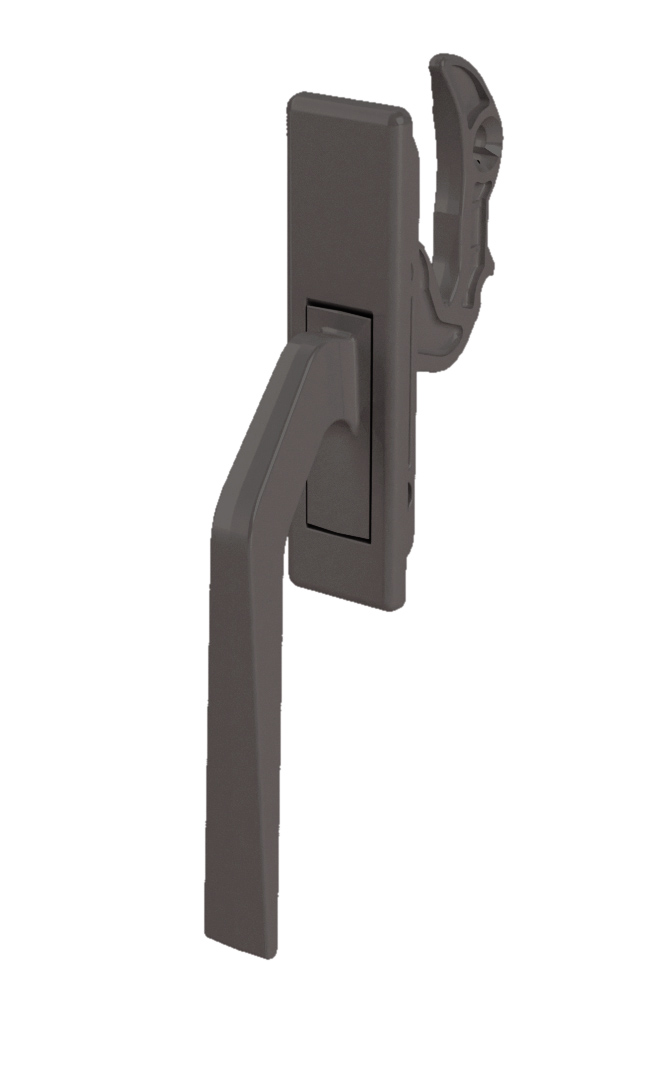

Designed to complement a wide variety of vinyl, aluminum and fiberglass window applications, handles lock and unlock sashes when moved vertically. For casement applications that may have a hard-to-reach second locking point, some handles use a tie bar which allows the locking points to work in tandem. The nose has a slight taper, which improves keeper engagement and offers .437" pull-in.
Product Highlights
•Face-mounted and rear-mounted styles available
•Available in single or two lock points
•A strong detent in both open and closed positions creates a solid and secure feel
•Hold up to 200lbs. of force per lock for negative air pressure and forced entry resistance
•Various hook lengths give maximum reach to help pull in and seal sagging windows.
•Can be connected with a tie bar handle-to-handle or handle-to-cam for simultaneous locking
•High pressure zinc diecast locking handle and housing with a stainless steel strike
Specifications
| Part # | Color Name | Series | Window Substrate | Mount Type |
|---|---|---|---|---|
| 24.10.01.201 | Aluminum | 24 | Aluminum PVC Comp | Facemount |
| 24.10.02.200 | Black | 24 | Aluminum PVC Comp | Facemount |
| 24.10.03.200 | Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.10.10.203.2 | Satin Nickel | 24 | Aluminum PVC Comp | Facemount |
| 24.10.23.200 | Chestnut Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.10.32.200 | White | 24 | Aluminum PVC Comp | Facemount |
| 24.11.01.201 | Aluminum | 24 | Aluminum PVC Comp | Facemount |
| 24.11.01.300 | Aluminum | 24 | Aluminum PVC Comp | Facemount |
| 24.11.02.200 | Black | 24 | Aluminum PVC Comp | Facemount |
| 24.11.02.300 | Black | 24 | Aluminum PVC Comp | Facemount |
| 24.11.10.201.2 | Satin Nickel | 24 | Aluminum PVC Comp | Facemount |
| 24.11.23.200 | Chestnut Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.11.32.200 | White | 24 | Aluminum PVC Comp | Facemount |
| 24.11.32.300 | White | 24 | Aluminum PVC Comp | Facemount |
| 24.11.FB.200 | Faux Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.11.FN.200 | Faux Nickel | 24 | Aluminum PVC Comp | Facemount |
| 24.11.MG.201 | MG | 24 | Aluminum PVC Comp | Facemount |
| 24.12.01.200 | Aluminum | 24 | Aluminum PVC Comp | Facemount |
| 24.12.02.200 | Black | 24 | Aluminum PVC Comp | Facemount |
| 24.12.02.201 | Black | 24 | Aluminum PVC Comp | Facemount |
| 24.12.23.200 | Chestnut Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.12.FN.200 | Faux Nickel | 24 | Aluminum PVC Comp | Facemount |
| 24.13.01.202 | Aluminum | 24 | Aluminum PVC Comp | Facemount |
| 24.13.01.203 | Aluminum | 24 | Aluminum PVC Comp | Facemount |
| 24.13.02.202 | Black | 24 | Aluminum PVC Comp | Facemount |
| 24.13.02.203 | Black | 24 | Aluminum PVC Comp | Facemount |
| 24.13.03.202 | Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.13.03.203 | Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.13.10.204.2 | Satin Nickel | 24 | Aluminum PVC Comp | Facemount |
| 24.13.10.205.2 | Satin Nickel | 24 | Aluminum PVC Comp | Facemount |
| 24.13.23.200 | Chestnut Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.13.23.201 | Chestnut Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.13.32.202 | White | 24 | Aluminum PVC Comp | Facemount |
| 24.13.32.203 | White | 24 | Aluminum PVC Comp | Facemount |
| 24.13.78.202 | Bright White | 24 | Aluminum PVC Comp | Facemount |
| 24.13.BK.202 | Matte Black | 24 | Aluminum PVC Comp | Facemount |
| 24.13.BK.203 | Matte Black | 24 | Aluminum PVC Comp | Facemount |
| 24.13.FB.202 | Faux Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.13.FB.203 | Faux Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.13.FN.202 | Faux Nickel | 24 | Aluminum PVC Comp | Facemount |
| 24.13.MG.202 | MG | 24 | Aluminum PVC Comp | Facemount |
| 24.15.23.200 | Chestnut Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.15.32.200 | White | 24 | Aluminum PVC Comp | Facemount |
| 24.23.01.200 | Aluminum | 24 | Aluminum PVC Comp | Facemount |
| 24.23.02.200 | Black | 24 | Aluminum PVC Comp | Facemount |
| 24.23.10.200 | Satin Nickel | 24 | Aluminum PVC Comp | Facemount |
| 24.23.32.200 | White | 24 | Aluminum PVC Comp | Facemount |
| 24.23.FB.200 | Faux Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.45.02.001 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.03.001 | Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.10.001 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.13.001 | 13 | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.14.001 | Antique Brass | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.24.001 | Beige | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.2A.001 | 2A | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.32.001 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.41.001 | Sahara Beige | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.52.001 | Oil Rubbed Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.53.001 | Satin Chrome | 24 | Aluminum PVC Comp | Rear Mount |
| 24.45.FB.001 | Faux Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 24.50.01.001 | Aluminum | 24 | Aluminum PVC Comp | Rear Mount |
| 24.50.02.001 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 24.50.10.001 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 24.50.32.001 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 24.50.69.001 | 69 | 24 | Aluminum PVC Comp | Rear Mount |
| 24.50.FN.001 | Faux Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 24.51.01.001 | Aluminum | 24 | Aluminum PVC Comp | Rear Mount |
| 24.51.02.001 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 24.51.10.001 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 24.51.32.001 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 24.51.78.001 | Bright White | 24 | Aluminum PVC Comp | Rear Mount |
| 24.51.FB.001 | Faux Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 24.51.FN.001 | Faux Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 24.52.01.001 | Aluminum | 24 | Aluminum PVC Comp | Rear Mount |
| 24.52.10.001 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 24.52.32.001 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 24.53.02.001 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 24.53.10.001 | Satin Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 24.53.23.001 | Chestnut Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 24.53.32.001 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 24.53.FN.001 | Faux Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 24.54.01.001 | Aluminum | 24 | Aluminum PVC Comp | Rear Mount |
| 24.54.02.001 | Black | 24 | Aluminum PVC Comp | Rear Mount |
| 24.54.32.001 | White | 24 | Aluminum PVC Comp | Rear Mount |
| 24.54.41.001 | Sahara Beige | 24 | Aluminum PVC Comp | Rear Mount |
| 24.54.42.001 | Snow White | 24 | Aluminum PVC Comp | Rear Mount |
| 24.54.78.001 | Bright White | 24 | Aluminum PVC Comp | Rear Mount |
| 24.54.FB.001 | Faux Bronze | 24 | Aluminum PVC Comp | Rear Mount |
| 24.54.FN.001 | Faux Nickel | 24 | Aluminum PVC Comp | Rear Mount |
| 24.92.01.100 | Aluminum | 24 | Aluminum PVC Comp | Facemount |
| 24.92.23.100 | Chestnut Bronze | 24 | Aluminum PVC Comp | Facemount |
| 24.92.32.100 | White | 24 | Aluminum PVC Comp | Facemount |
