Reach: 0.390"

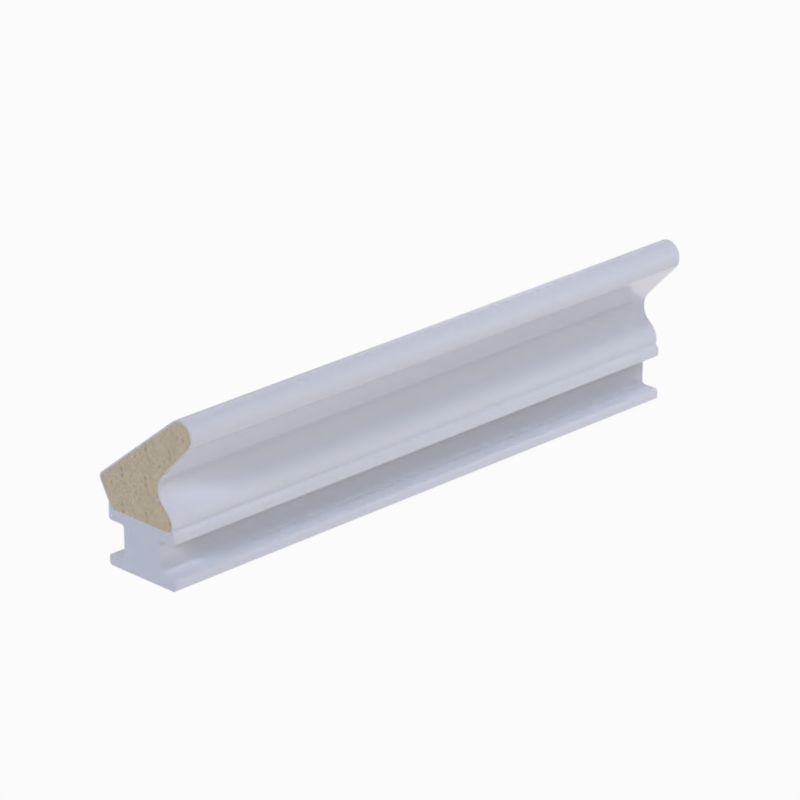

52046
Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.
This product features our embossed polyethylene jacket which provides great co-efficient of friction properties and allows for easy compression and great recovery.
product highlights
- Overall Height: .530" (13.46mm)
- Bulb Height: .355" (9.02mm)
- Bulb Width: .387" (9.83mm)
- Base Width: .275" (6.99mm)
Specifications
| Part # | Box Quantity | Cut Length | Recommended Opening | Reach | Backing / Kerf Width |
|---|---|---|---|---|---|
| 52046111691000 | 2,000' | Reeled | 0.310" | 0.390" | 0.275" |
| 52046112091000 | 2,000' | Reeled | 0.310" | 0.390" | 0.275" |
| 52046112191000 | 2,000' | Reeled | 0.310" | 0.390" | 0.275" |
| 52046112591000 | 2,000' | Reeled | 0.310" | 0.390" | 0.275" |
| 52046113091000 | 2,000' | Reeled | 0.310" | 0.390" | 0.275" |
Blacks
Browns
Tans
Whites
