Reach: 0.590"

32341

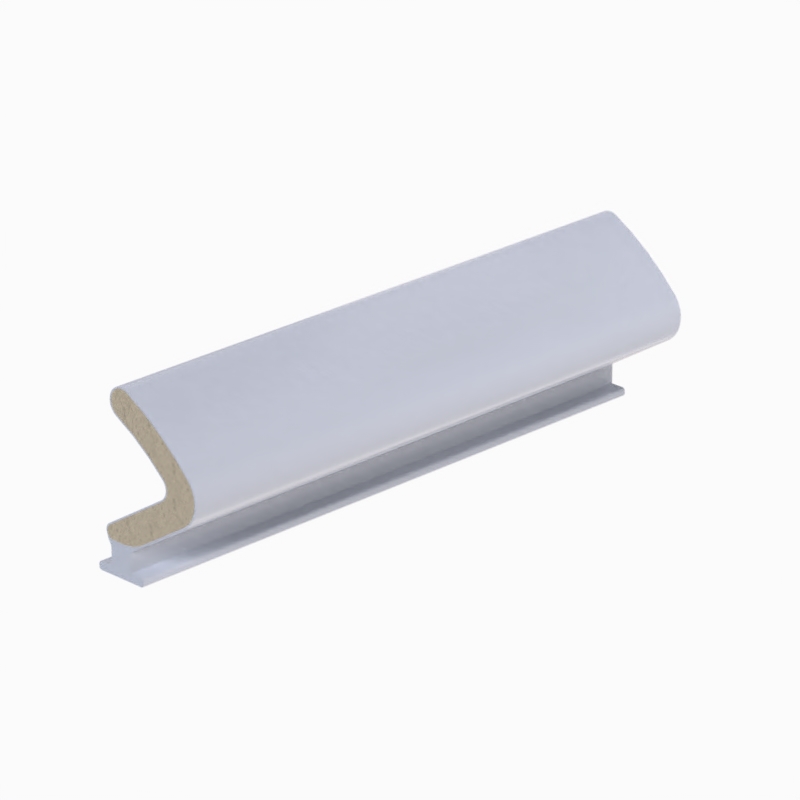

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

product highlights

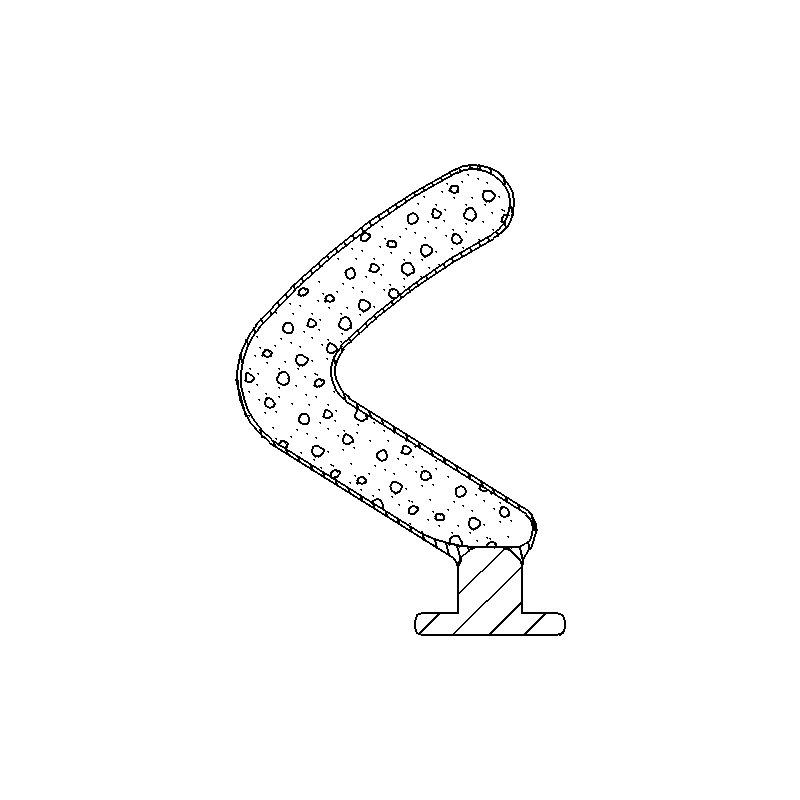

  • Overall Height: .590" (14.99mm)
  • Bulb Height: .480" (12.19mm)
  • Bulb Width: .376" (9.55mm)
  • Base Width: .187" (4.75mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
32341111791000 2,000' Reeled 0.210" 0.590" 0.187"
32341112091000 2,000' Reeled 0.210" 0.590" 0.187"
32341112191000 2,000' Reeled 0.210" 0.590" 0.187"
32341112291000 2,000' Reeled 0.210" 0.590" 0.187"
32341112591000 2,000' Reeled 0.210" 0.590" 0.187"
32341112191000Q1 2,000' Reeled 0.210" 0.590" 0.187"
32341112591000Q1 2,000' Reeled 0.210" 0.590" 0.187"
32341113391000Q1 2,000' Reeled 0.210" 0.590" 0.187"

Blacks

Black
Black

Greys

Gray
Gray

Tans

Sandstone
Sandstone
Tan
Tan

Whites

Bright White
Bright White
Standard White
Standard White
