Reach: 0.334"
32102
Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.
C2 seals form a continuous seal all the way around the frame in one easy installation step. Reduces air and water infiltration in corners.
product highlights

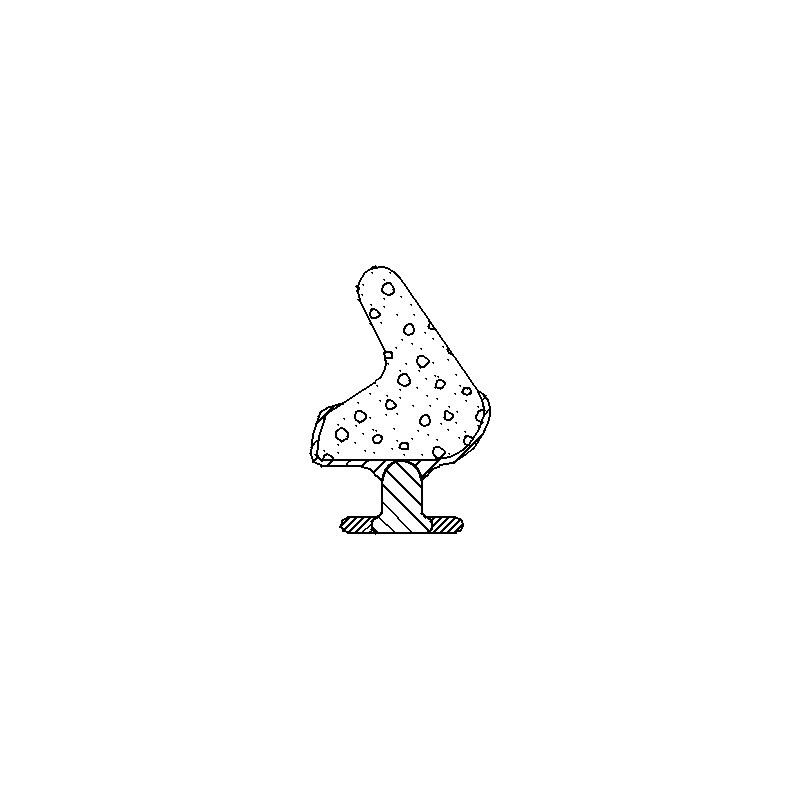

- Overall Height: .334" (8.89mm)
- Bulb Height: .250" (6.35mm)
- Bulb Width: .225" (5.72mm)
- Base Width: .270" (6.86mm)
Specifications
| Part # | Box Quantity | Cut Length | Recommended Opening | Reach | Backing / Kerf Width |
|---|---|---|---|---|---|
| 32012111792500 | 5,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32012112092500 | 5,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32012112192500 | 5,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32012112592500 | 5,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32012113092500 | 5,000' | Reeled | 0.210" | 0.375" | 0.187" |
Blacks
Tans
Whites
