32086

Reach: 0.350"

32086

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

product highlights

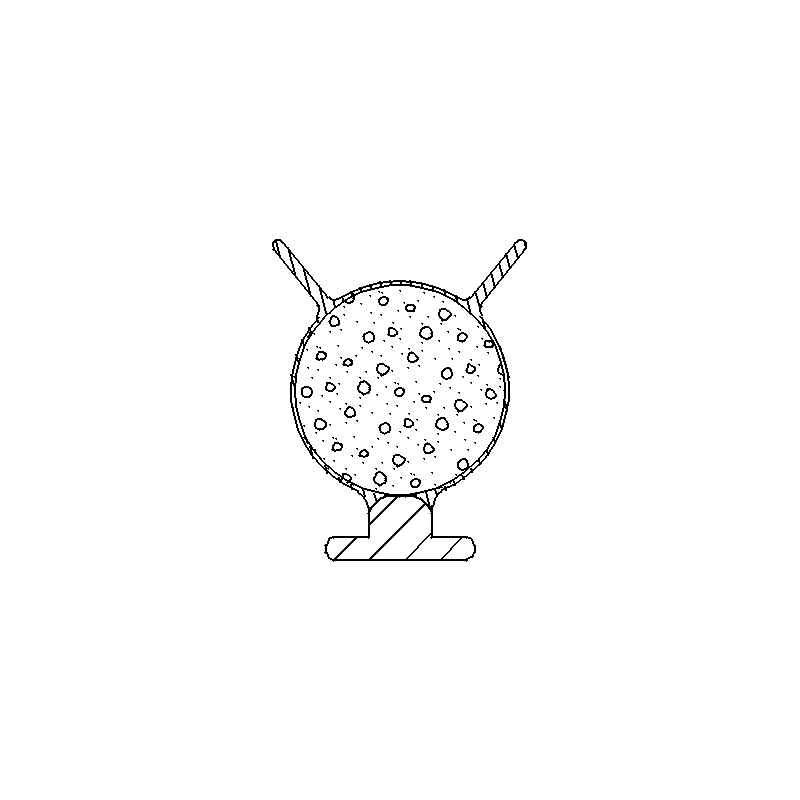

  • Overall Height: .400" (10.16mm)
  • Bulb Diameter: .275" (6.99mm)
  • Base Width: .187" (4.75mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
32086111791500 3,000' Reeled 0.210" 0.350" 0.187"
32086111891500 3,000' Reeled 0.210" 0.350" 0.187"
32086112091500 3,000' Reeled 0.210" 0.350" 0.187"
32086112191500 3,000' Reeled 0.210" 0.350" 0.187"
32086112591500 3,000' Reeled 0.210" 0.350" 0.187"
32086114291500 3,000' Reeled 0.210" 0.350" 0.187"

Blacks

Black
Black

Tans

Foam TPE - Beige
Foam TPE - Beige
Suede
Suede
Tan
Tan

Whites

Bright White
Bright White
Standard White
Standard White
