Reach: 0.206"
PP3374

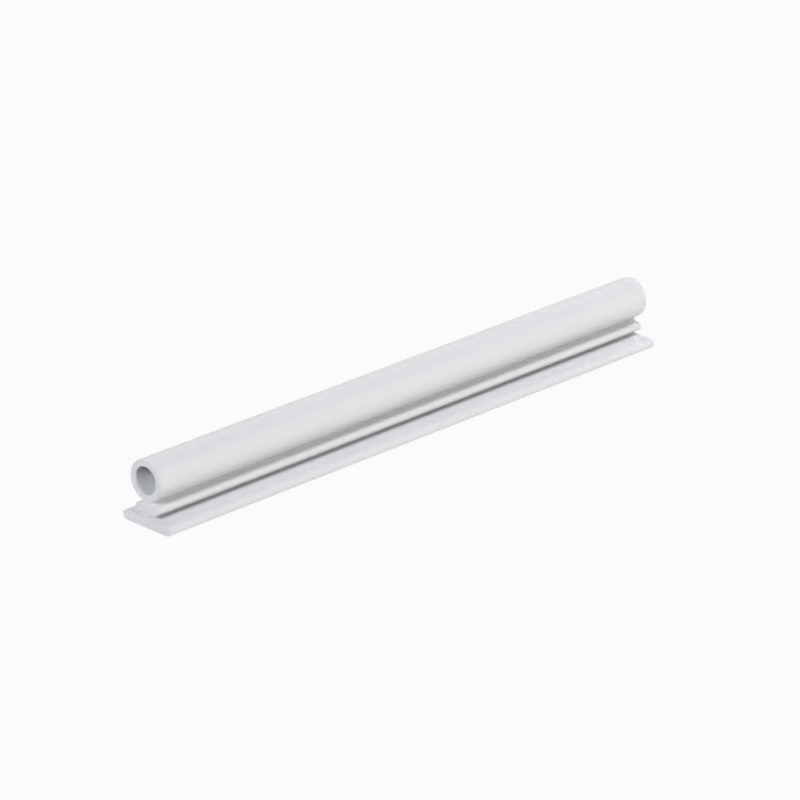

Aptus seals are extruded TPEs. This material combines the flexibility of a thermoplastic with the functional performance and properties of a conventional thermoset rubber. Compression seal with a reach of .206"(5.2mm) is ideal for tight spaces, for mounting distances of .10" to .16" and a bulb diameter of .125"(3.1mm). With a backing width of .195"(4.95mm), this T-slot base works well in the majority of PVC and aluminum extrusions. TPE bulb composition is an alternative to textile products in adverse environments.
product highlights
- T-Slot Width 0.210" (5.3mm)
- T-Slot Depth 0.050" (1.3mm)
- Flexible bulb acts as a mechanical seal with little resistance
- Conforms to the shape of the sealing surface better than a rigid part
- T-slot base is made from rigid polypropylene
Specifications
| Part # | Box Quantity | Recommended Kerf Opening | Backing / Kerf Width |
|---|---|---|---|
| PP3374 | 3000' | 0.210" | 0.195" |
Greys
Whites
