52031

Reach: 0.210"

52031

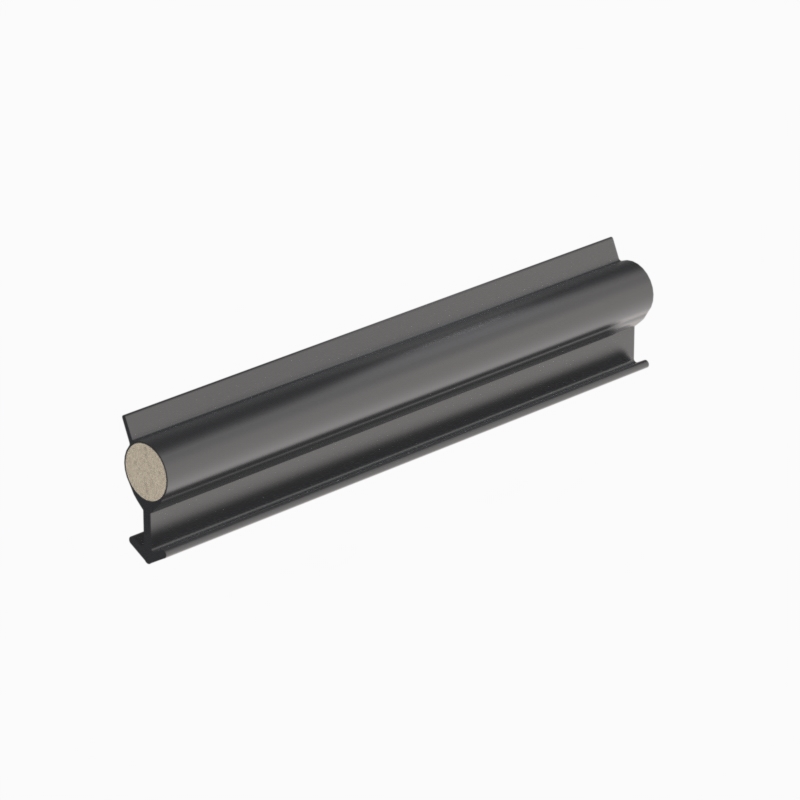

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and Phthalate free.

product highlights

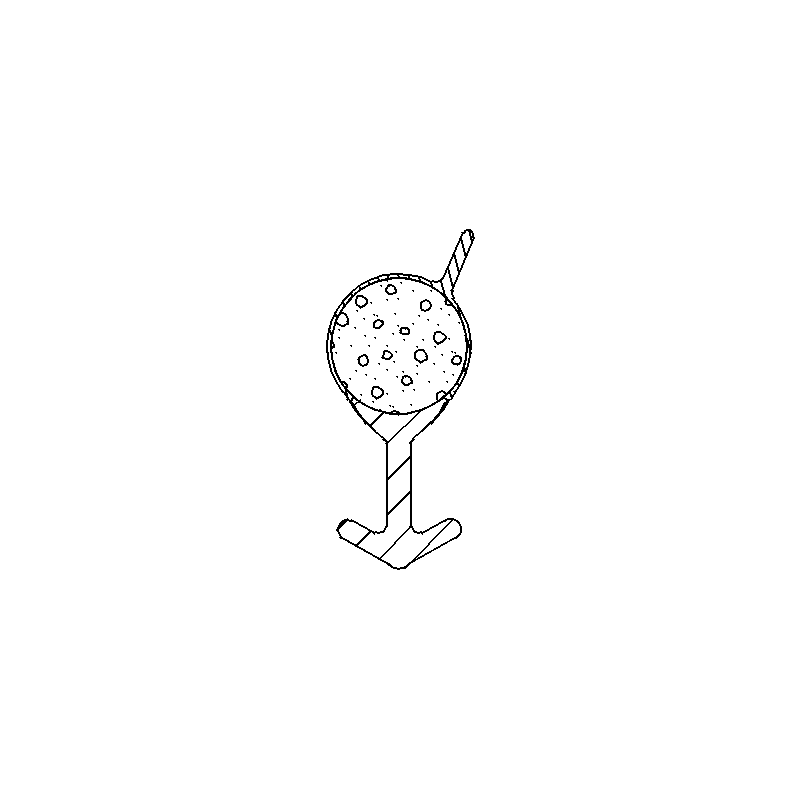

  • Overall Height: .425" (10.80mm)
  • Bulb Diameter: .170" (4.32mm)
  • Pocket Depth: .160" (4.06mm)
  • Pocket Width: .155" (3.94mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
52031112091250 2500' Reeled 0.155" 0.210" 0.155"

Blacks

Black
Black
