QL 3078

Reach 0.354"

QL 3078

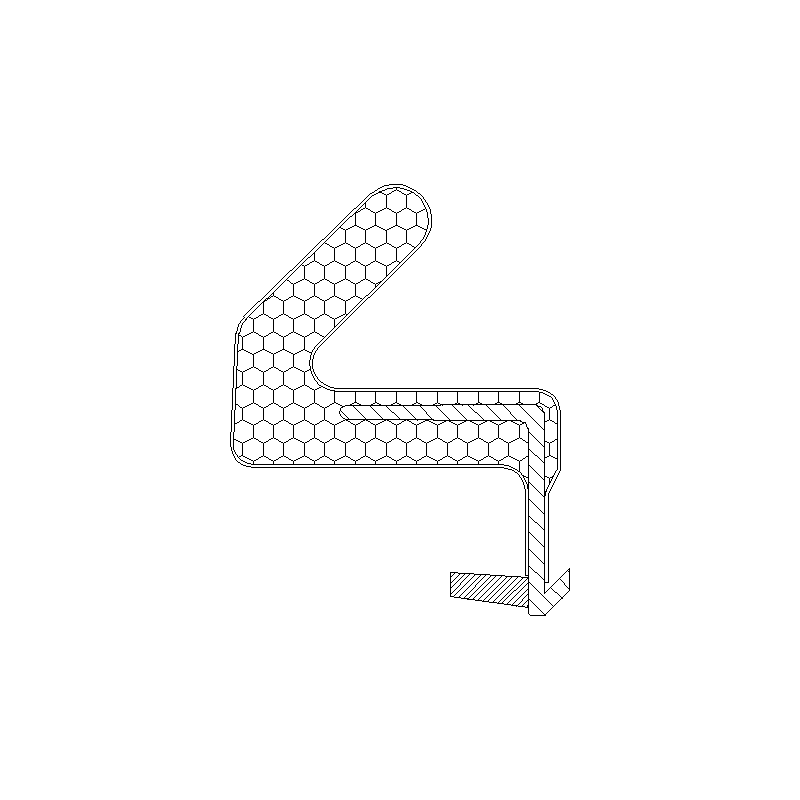

Composed of open cell foam and a polyethylene liner which provides maximum long-term performance with low compression force, and resistance against compression set. Retains its original shape year after year to maintain an excellent weatherseal.

Product Highlights

  • Main Seal Material: Polyurethane foam
  • Seal Operation: Hinged
  • Seal Application: Windows, Entry Doors, Furniture
  • Seal Fitting Type: Kerf Slot
  • Seal gap min:  0.157” (4.00mm)
  • Seal gap max: 0.295” (7.50mm)
  • Groove depth: 0.236” (6.00mm)
  • Groove width min: 0.118” (3.00mm)
  • Groove width max: 0.130” (3.30mm)


Specifications

Part # Box Quantity Recommended Opening Reach Backing / Kerf Width
QL 3078-1001 1,640' 0.124" 0.354" 0.150"
QL 3078-8019 1,640' 0.124" 0.354" 0.150"
QL 3078-9003 1,640' 0.124" 0.354" 0.150"
QL 3078-9005 1,640' 0.124" 0.354" 0.150"

Blacks

Black
Black

Browns

Bronze
Bronze

Tans

Beige
Beige

Whites

White
White
