52033

Reach: 0.225"

52033

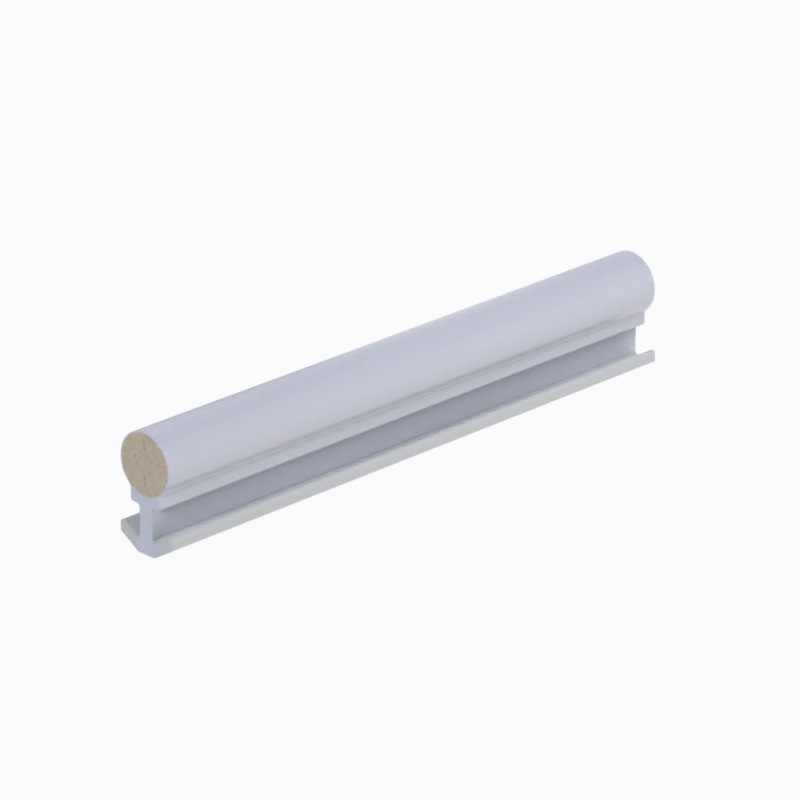

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

product highlights

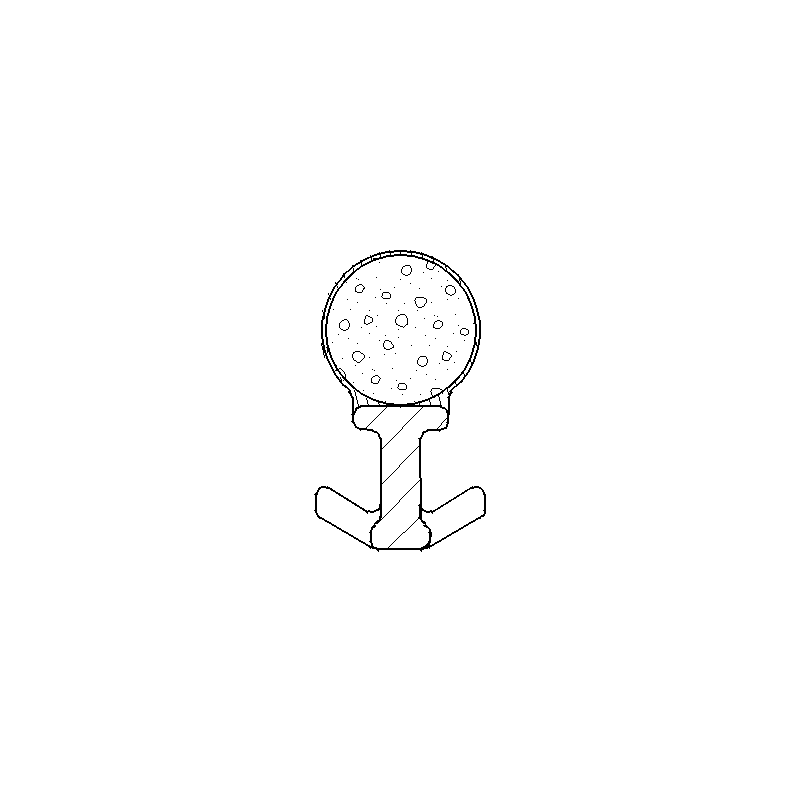

  • Overall Height: .225" (5.72mm)
  • Bulb Diameter: .200" (5.08mm)
  • Pocket Depth: .180" (4.57mm)
  • Pocket Width: .212" (5.38mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
52033112091500 3000' Reeled 0.100" 0.225" 0.212"
52033112191500 3000' Reeled 0.100" 0.225" 0.212"
52033113391500 3000' Reeled 0.100" 0.225" 0.212"
52033114191500 3000' Reeled 0.100" 0.225" 0.212"

Blacks

Black
Black

Tans

Adobe
Adobe
Sandstone
Sandstone

Whites

Bright White
Bright White
