Reach: 0.375"

32823

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

This product features our embossed polyethylene jacket which provides great co-efficient of friction properties and allows for easy compression and great recovery.

product highlights

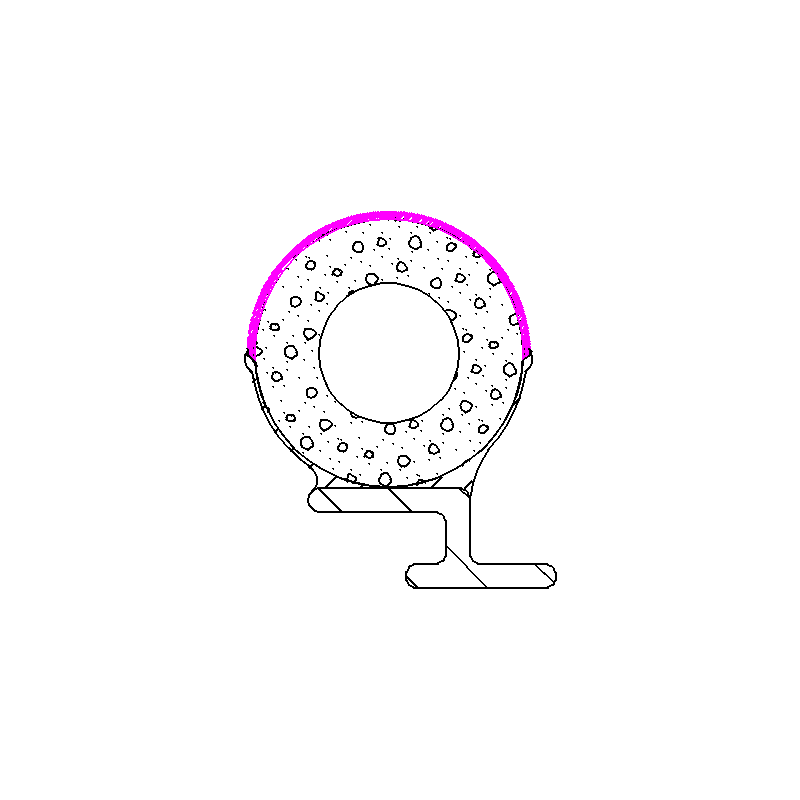

  • Off-set carrier design makes this shape a great fit for bottom and meeting rail applications
  • Overall Height:  .375" (9.53mm)
  • Bulb Diameter:  .360"  (9.14mm)
  • Base Width:  .187" (4.754mm)


Specifications

Part # Box Quantity Cut Length Backing/Kerf Width Reach
32823112590750 1,500' Reeled 0.210" 0.375"

Tans

Vision Tan
Vision Tan
