32716

Reach: 0.500"

32716

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

product highlights

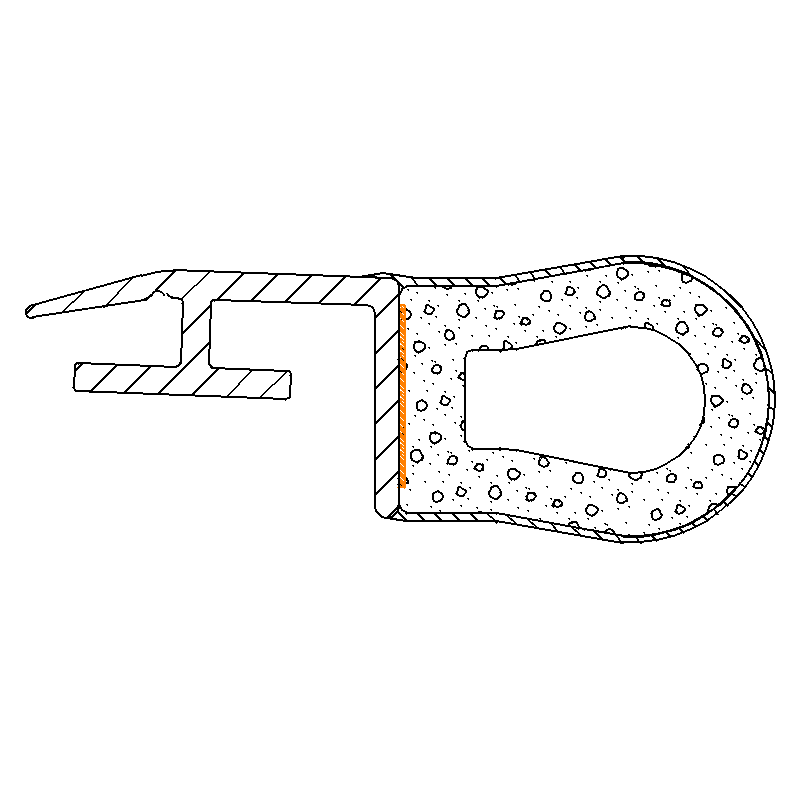

  • Off-set carrier design makes this shape a great fit for bottom and meeting rail applications
  • Overall Height:  .500" (12.7mm)
  • Bulb Diameter:  .359"  (9.12mm)
  • Base Width:  .270" (6.86mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
32716114290750 1,500' Reeled 0.310" 0.500" 0.270"

Tans

Suede
Suede
