Reach: 0.320"
32711
Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.
Product Highlights
-

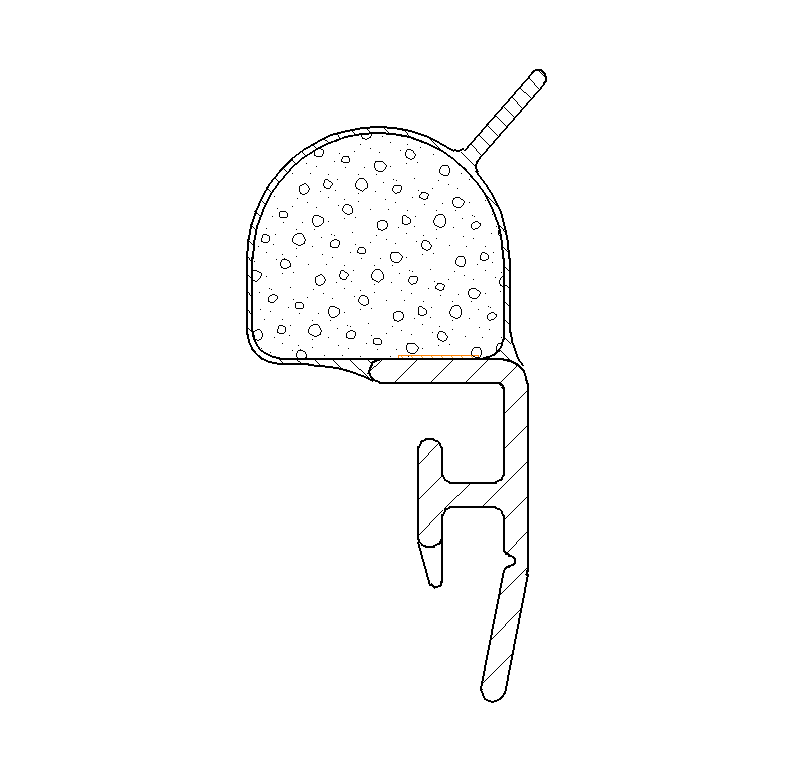

Off-set carrier design makes this shape a great fit for bottom and meeting rail applications
-
Overall Height: .390" (9.91mm)
-
Bulb Diameter: .320" (8.13mm)
-
Base Width: .187" (4.75mm)
Specifications
| Part # | Box Quantity | Cut Length | Recommended Opening | Reach | Backing / Kerf Width |
|---|---|---|---|---|---|
| 32711111614400 | 100 | 144" | 0.210" | 0.320" | 0.187" |
| 32711111690750 | 1,500' | Reeled | 0.210" | 0.320" | 0.187" |
| 32711112014400 | 100 | 144" | 0.210" | 0.320" | 0.187" |
| 32711112090750 | 1,500' | Reeled | 0.210" | 0.320" | 0.187" |
| 32711112114400 | 100 | 144" | 0.210" | 0.320" | 0.187" |
| 32711112190750 | 1,500' | Reeled | 0.210" | 0.320" | 0.187" |
| 32711112514400 | 100 | 144" | 0.210" | 0.320" | 0.187" |
| 32711112590750 | 1,500' | Reeled | 0.210" | 0.320" | 0.187" |
| 32711113314400 | 100 | 144" | 0.210" | 0.320" | 0.187" |
| 32711113390750 | 1,500' | Reeled | 0.210" | 0.320" | 0.187" |
| 32711114214400 | 100 | 144" | 0.210" | 0.320" | 0.187" |
| 32711114290750 | 1,500' | Reeled | 0.210" | 0.320" | 0.187" |
Blacks
Browns
Tans
Whites
