32705

Reach: 0.310"

32705

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

product highlights

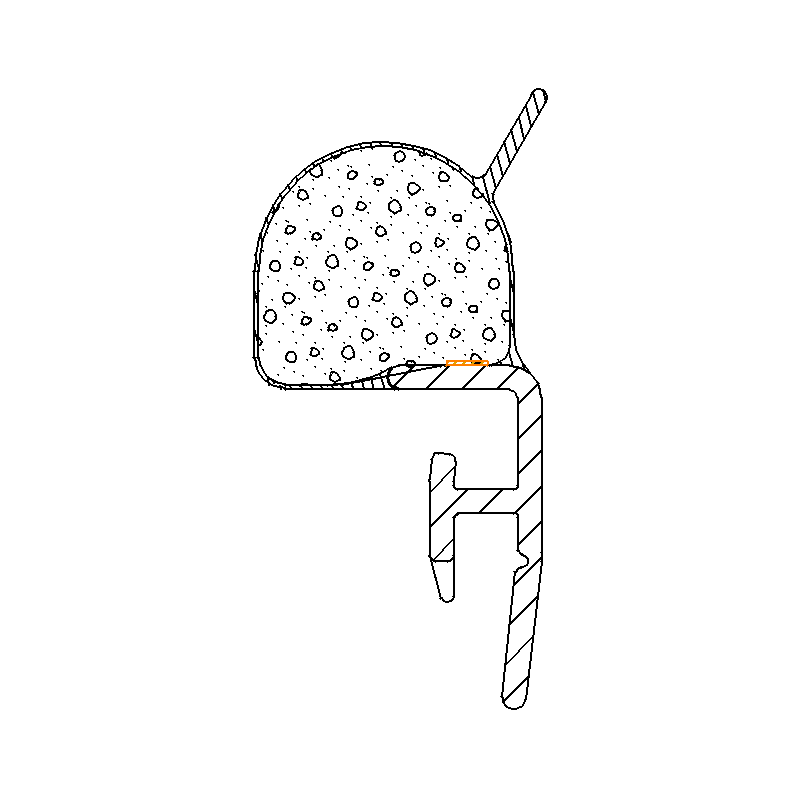

  • Off-set carrier design makes this shape a great fit for bottom and meeting rail applications
  • Overall Height:  .375" (9.53mm)
  • Bulb Diameter:  .310"  (7.87mm)
  • Base Width:  .187" (4.75mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
32705111614400 100 144" 0.210" 0.310" 0.187"
32705112014400 100 144" 0.210" 0.310" 0.187"
32705112091000 2,000' Reeled 0.210" 0.310" 0.187"
32705112114400 100 144" 0.210" 0.310" 0.187"
32705112191000 2,000' Reeled 0.210" 0.310" 0.187"
32705112514400 100 144" 0.210" 0.310" 0.187"
32705112591000 2,000' Reeled 0.210" 0.310" 0.187"
32705113314400 100 144" 0.210" 0.310" 0.187"
32705114214400 100 144" 0.210" 0.310" 0.187"
32705114291000 2,000' Reeled 0.210" 0.310" 0.187"

Blacks

Black
Black

Browns

Brown
Brown

Tans

Sandstone
Sandstone
Suede
Suede
Tan
Tan

Whites

Bright White
Bright White
