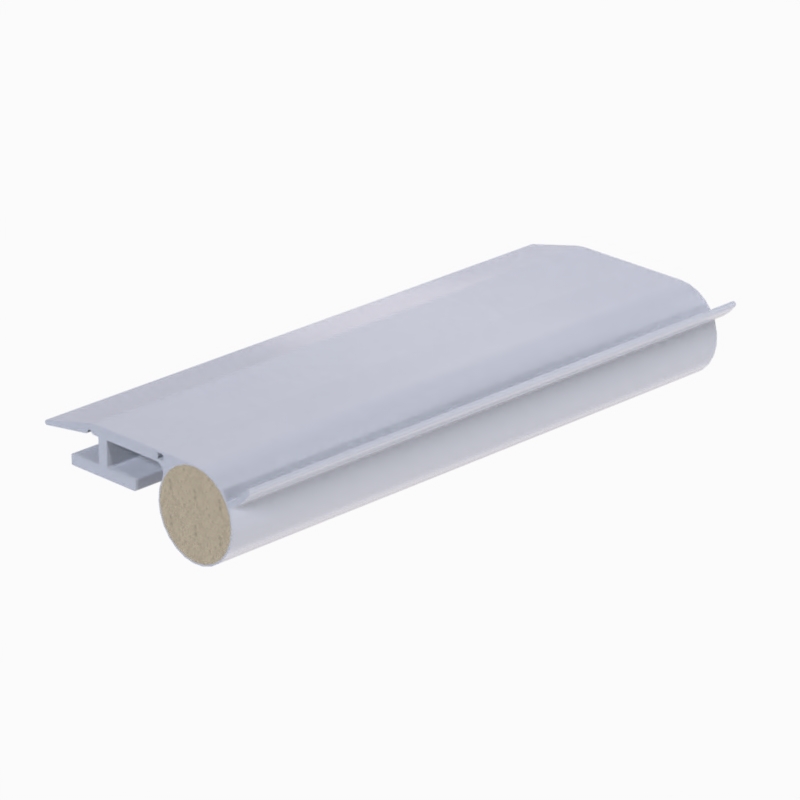

32696

Reach: 0.300"

32696

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

product highlights

  • Off-set carrier design makes this shape a great fit for bottom and meeting rail applications
  • Overall Height:  .370" (9.4mm)
  • Bulb Diameter:  .300"  (7.62mm)
  • Base Width:  .270" (6.86mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
32696111791000 2,000' Reeled 0.310" 0.300" 0.270"
32696112091000 2,000' Reeled 0.310" 0.300" 0.270"
32696112191000 2,000' Reeled 0.310" 0.300" 0.270"

Blacks

Black
Black

Whites

Bright White
Bright White
Standard White
Standard White
