Reach: 0.400"
32692
Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.
product highlights
-

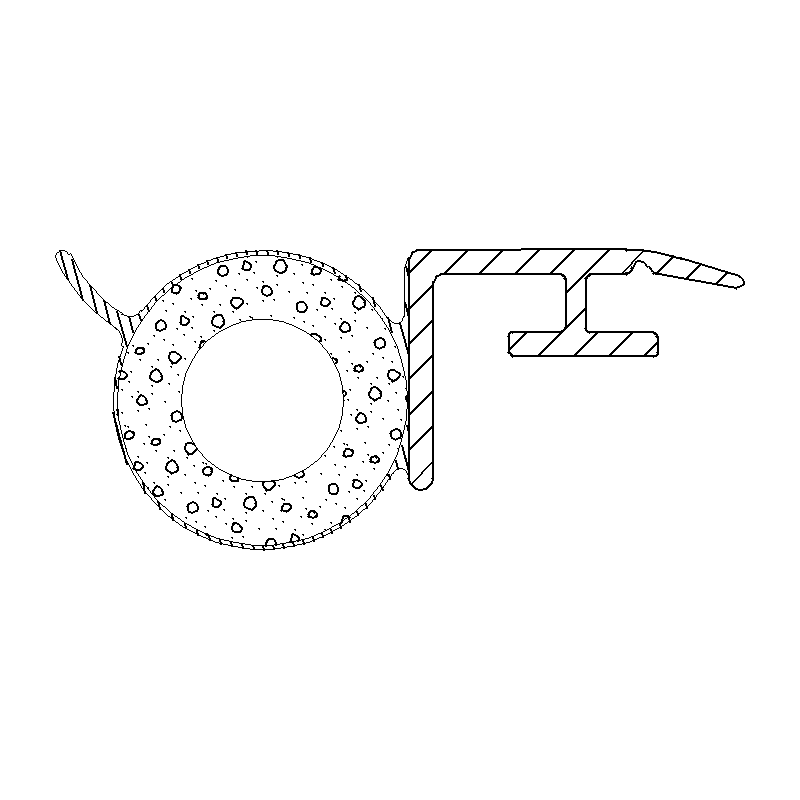

Off-set carrier design makes this shape a great fit for bottom and meeting rail applications
-
Overall Height: .470" (11.94mm)
-
Bulb Diameter: .400" (10.16mm)
-
Base Width: .187" (4.75mm)
Specifications
| Part # | Box Quantity | Cut Length | Recommended Opening | Reach | Backing / Kerf Width |
|---|---|---|---|---|---|
| 32692111690750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692111790750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692111890750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692112090750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692112190750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692112290750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692112590750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692112990750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692113090750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692113390750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692113890750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692114190750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
| 32692114290750 | 1,500' | Reeled | 0.210" | 0.400" | 0.187" |
Blacks
Browns
Greys
Tans
Whites
