Reach: 0.300"

32690

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

product highlights

  • Recommended for:  aluminum, composite, vinyl, and wood

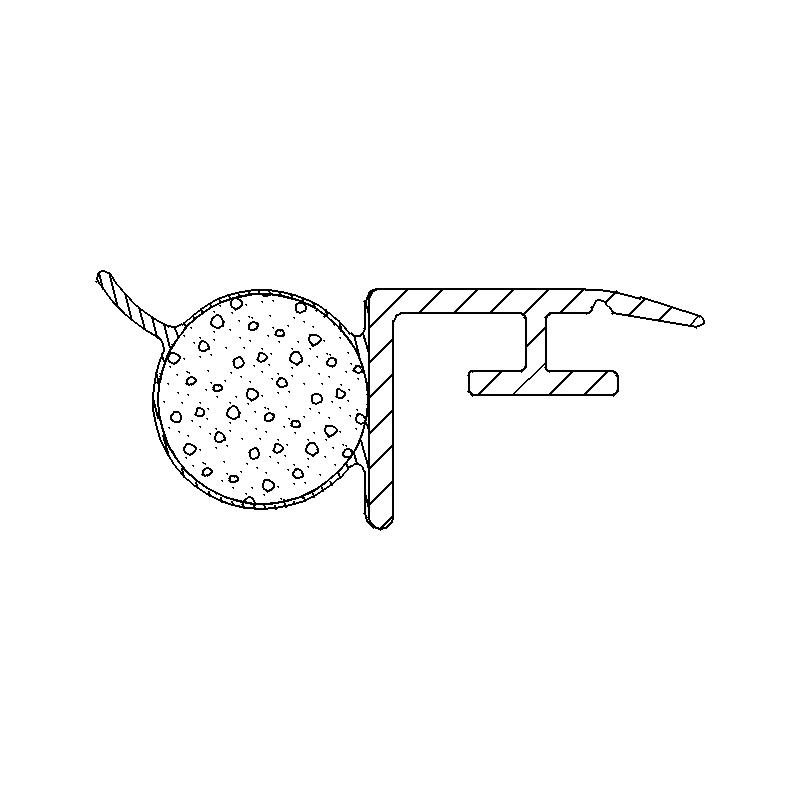

  • Off-set carrier design makes this shape a great fit for bottom and meeting rail applications
  • Overall Height:  .370" (9.4mm)
  • Bulb Diameter:  .300"  (7.62mm)
  • Base Width:  .187" (4.75mm)


Specifications

Part # Box Quantity Cut Length Backing/Kerf Width Reach
32690111691000 2,000' Reeled 0.210" 0.300"
32690111791000 2,000' Reeled 0.210" 0.300"
32690112091000 2,000' Reeled 0.210" 0.300"
32690112191000 2,000' Reeled 0.210" 0.300"
32690112591000 2,000' Reeled 0.210" 0.300"
32690113391000 2,000' Reeled 0.210" 0.300"
32690114191000 2,000' Reeled 0.210" 0.300"
32690114291000 2,000' Reeled 0.210" 0.300"

Blacks

Black
Black

Browns

Brown
Brown

Tans

Adobe
Adobe
Sandstone
Sandstone
Vision Tan
Vision Tan

Whites

Bright White
Bright White
Standard White
Standard White
