Reach: 0.375"
32654
Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.
product highlights
-

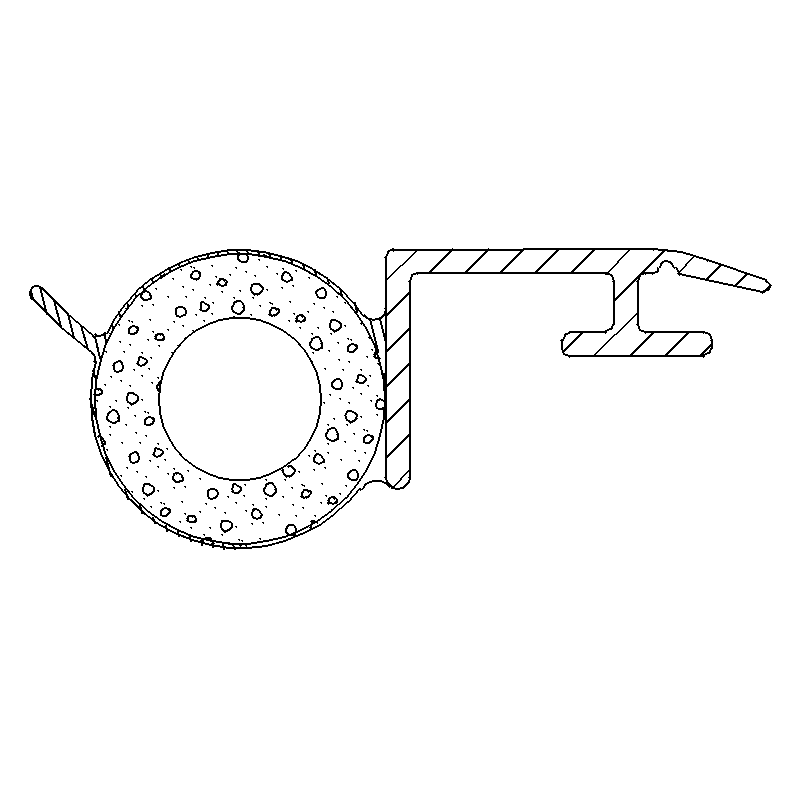

Off-set carrier design makes this shape a great fit for bottom and meeting rail applications
-
Overall Height: .475" (12.07mm)
-
Bulb Diameter: .400" (10.16mm)
-
Base Width: .187" (4.75mm)
Specifications
| Part # | Box Quantity | Cut Length | Recommended Opening | Reach | Backing / Kerf Width |
|---|---|---|---|---|---|
| 32654111690500 | 1,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32654111890500 | 1,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32654112090500 | 1,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32654112190500 | 1,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32654112290500 | 1,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32654112590500 | 1,000' | Reeled | 0.210" | 0.375" | 0.187" |
| 32654114190500 | 1,000' | Reeled | 0.210" | 0.375" | 0.187" |
Blacks
Browns
Greys
Tans
Whites
