Reach: 0.395"


Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

C2 seals form a continuous seal all the way around the frame in one easy installation step. Reduces air and water infiltration in corners.

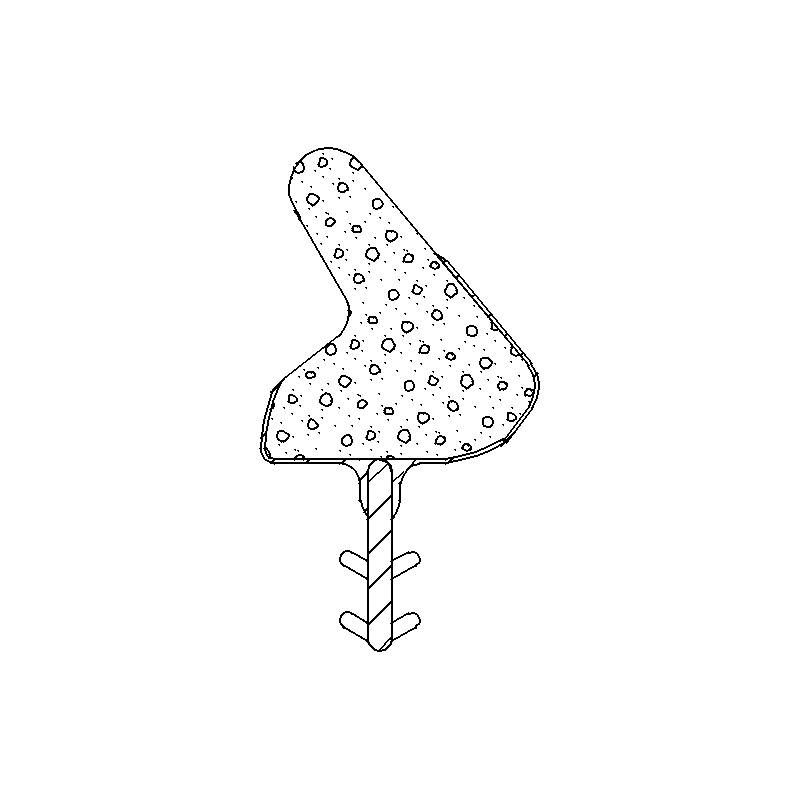

product highlights

  • Overall Reach: .395" (10.03mm)
  • Bulb Width: .350" (8.89mm)
  • Kerf Depth: .235" (5.97mm)
  • Kerf Width: .100" (2.54mm)


Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
12349132091000 2,000' Reeled 0.080" 0.395" 0.100"
