12348

Reach: 0.410"

12348

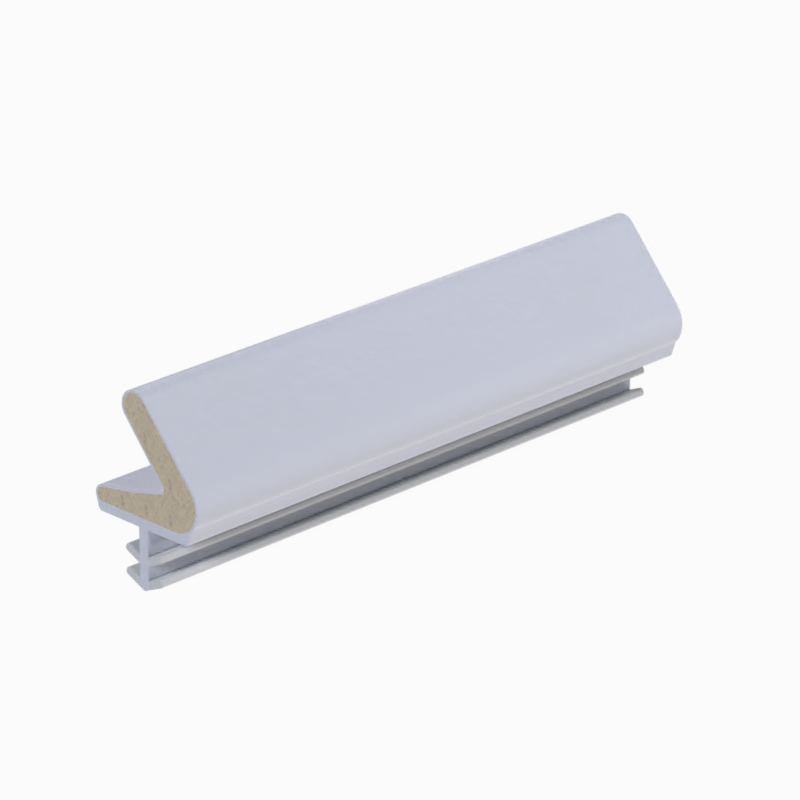

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

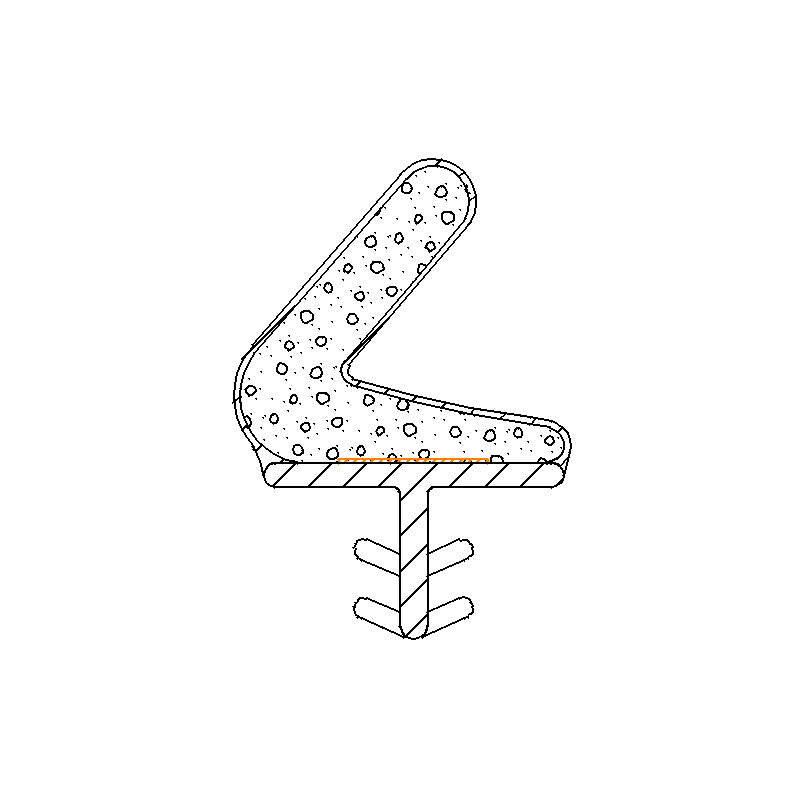

product highlights

  • Overall Reach: .410" (10.41mm)
  • Bulb Width: .423" (10.74mm)
  • Kerf Depth: .192" (4.88mm)
  • Kerf Width: .150" (3.81mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
12348112009600 100 96" 0.120" 0.410" 0.150"
12348112014400 100 144" 0.120" 0.410" 0.150"
12348112109600 100 96" 0.120" 0.410" 0.150"
12348112114400 100 144" 0.120" 0.410" 0.150"
12348112509600 100 96" 0.120" 0.410" 0.150"
12348112514400 100 144" 0.120" 0.410" 0.150"

Blacks

Black
Black

Tans

Tan
Tan

Whites

Bright White
Bright White
