12328

Reach: 0.325"

12328

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and Phthalate free.

C2 seals form a continuous seal all the way around the frame in one easy installation step. Reduces air and water infiltration in corners.

product highlights

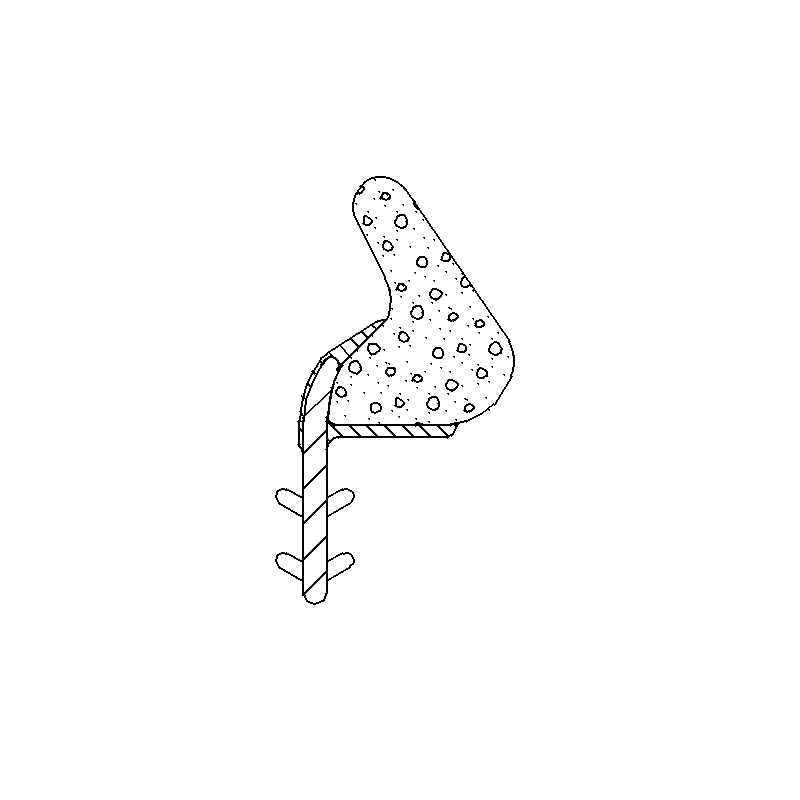

  • Overall Reach: .325" (8.26mm)
  • Bulb Width: .270" (6.86mm)
  • Kerf Depth: .210" (5.33mm)
  • Kerf Width: .100" (2.54mm)


Specifications

Part # Box Quantity Recommended Opening Backing / Kerf Width
12328132091500 3000' 0.080" 0.100"
12328272591500 3000' 0.080" 0.100"

Blacks

Black
Black

Tans

Tan
Tan
