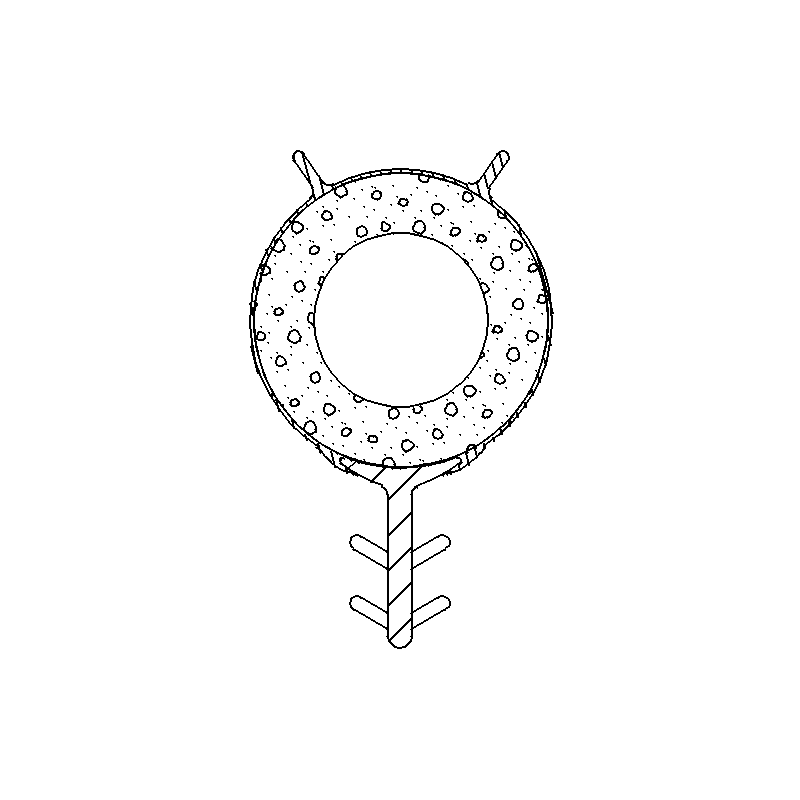

12252

Reach: 0.400"

12252

Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite®'s products are CFC and phthalate free.

product highlights

  • Overall Reach: .422" (10.72mm)
  • Bulb Diameter: .370" (9.40mm)
  • Kerf Depth: .200" (5.08mm)
  • Kerf Width: .125" (3.18mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
12252111608100 200 81" 0.100" 0.400" 0.125"
12252111609700 200 97" 0.100" 0.400" 0.125"
12252111891000 2,000' Reeled 0.100" 0.400" 0.125"
12252112009700 200 97" 0.100" 0.400" 0.125"
12252112091000 2,000' Reeled 0.100" 0.400" 0.125"
12252112108100 200 81" 0.100" 0.400" 0.125"
12252112109700 200 97" 0.100" 0.400" 0.125"
12252112191000 2,000' Reeled 0.100" 0.400" 0.125"
12252112591000 2,000' Reeled 0.100" 0.400" 0.125"
12252113091000 2,000' Reeled 0.100" 0.400" 0.125"

Blacks

Black
Black

Browns

Brown
Brown

Tans

Foam TPE - Beige
Foam TPE - Beige
Tan
Tan

Whites

Arctic White
Arctic White
Bright White
Bright White
