Reach: 0.315"

12234

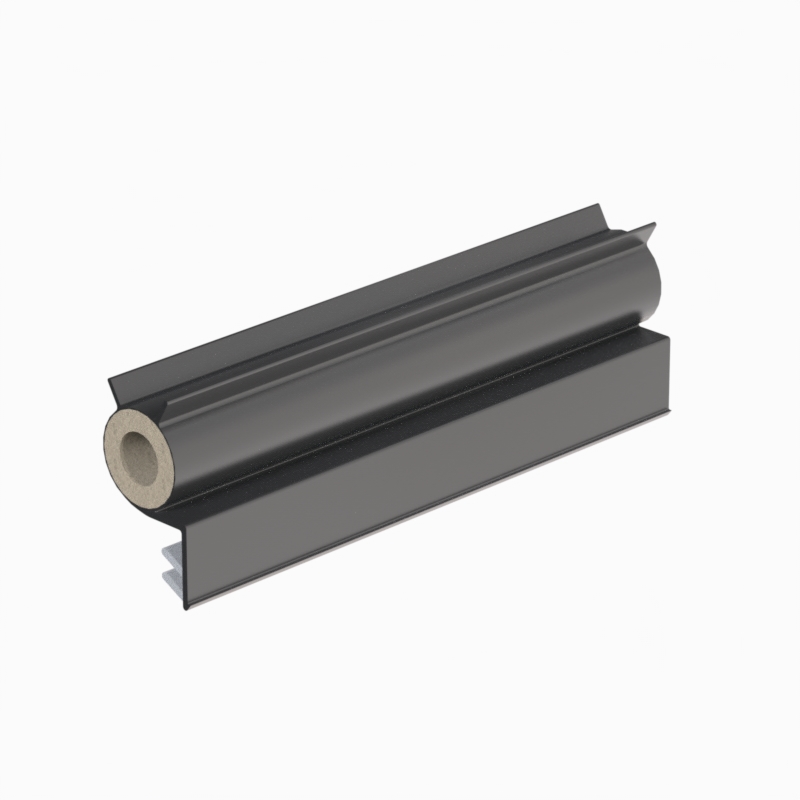

Thermoplastic Elastomers (TPE's) with nearly 100% closed cell structure for prevention of water penetration. Extruded skin provides UV resistant barrier to enhance seal performance and is CFC and phthalate free.

product highlights

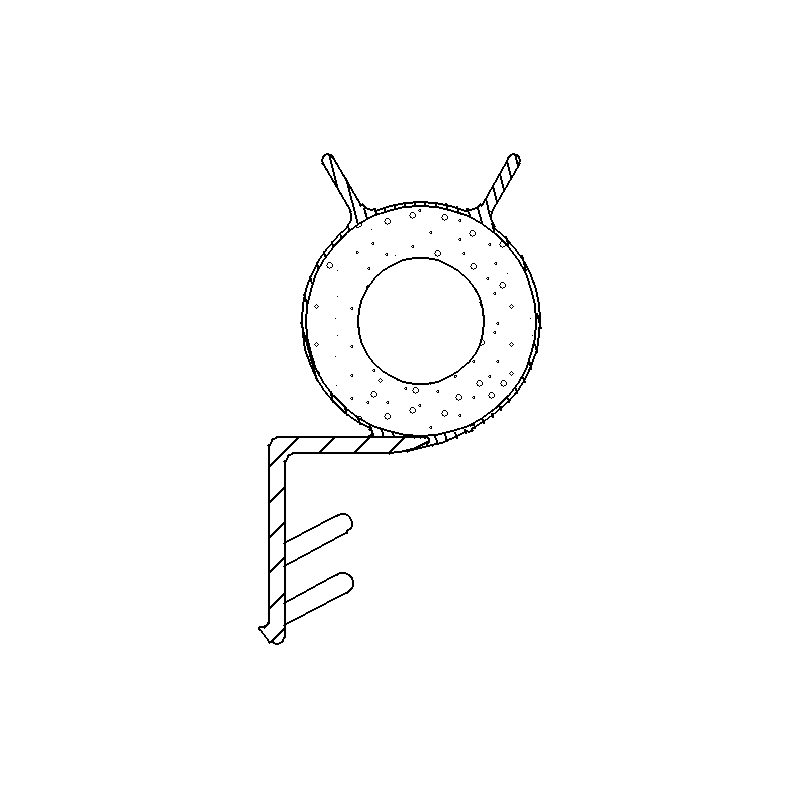

  • Overall Reach: .374" (9.50mm)
  • Bulb Diameter: .300" (7.62mm)
  • Kerf Depth: .240" (6.10mm)
  • Kerf Width: .105" (2.67mm)


Specifications

Part # Box Quantity Cut Length Recommended Opening Reach Backing / Kerf Width
12234111891000 2,000' Reeled 0.080" 0.315" 0.105"
12234112091000 2,000' Reeled 0.080" 0.315" 0.105"

Blacks

Black
Black

Tans

Foam TPE - Beige
Foam TPE - Beige
