Contour®

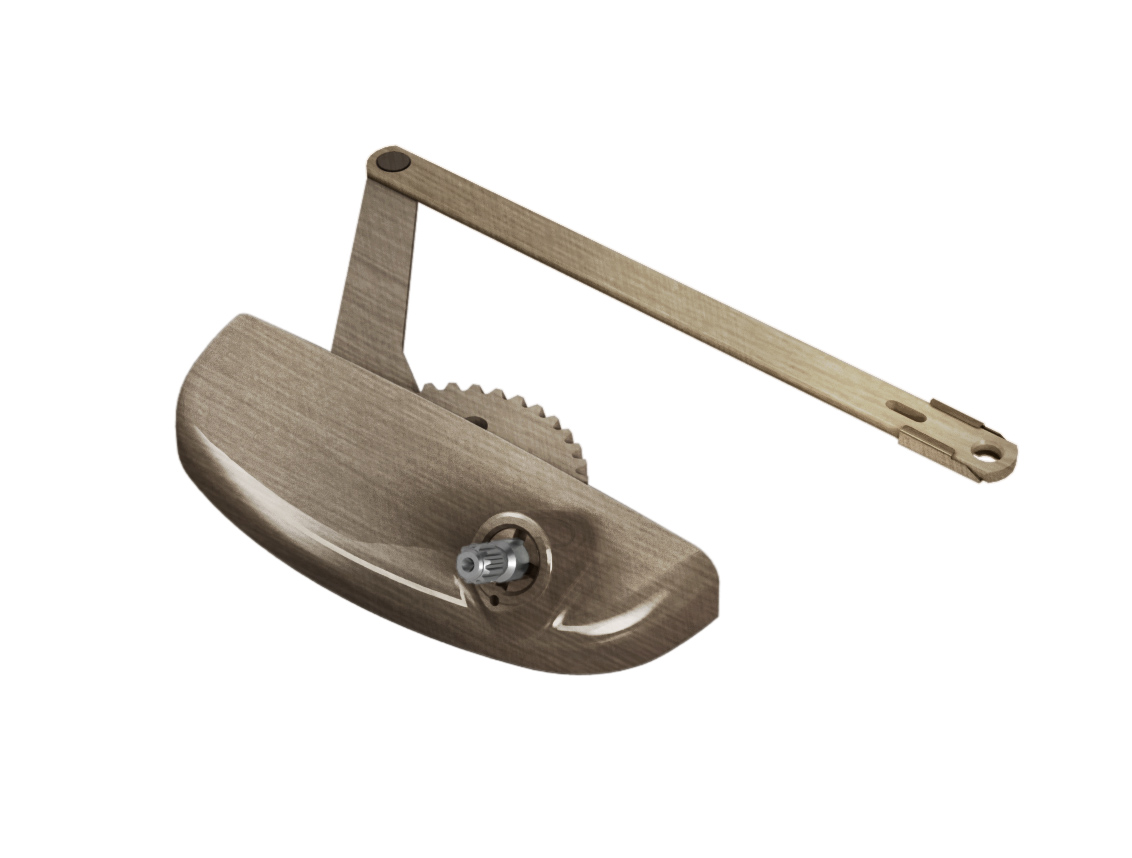

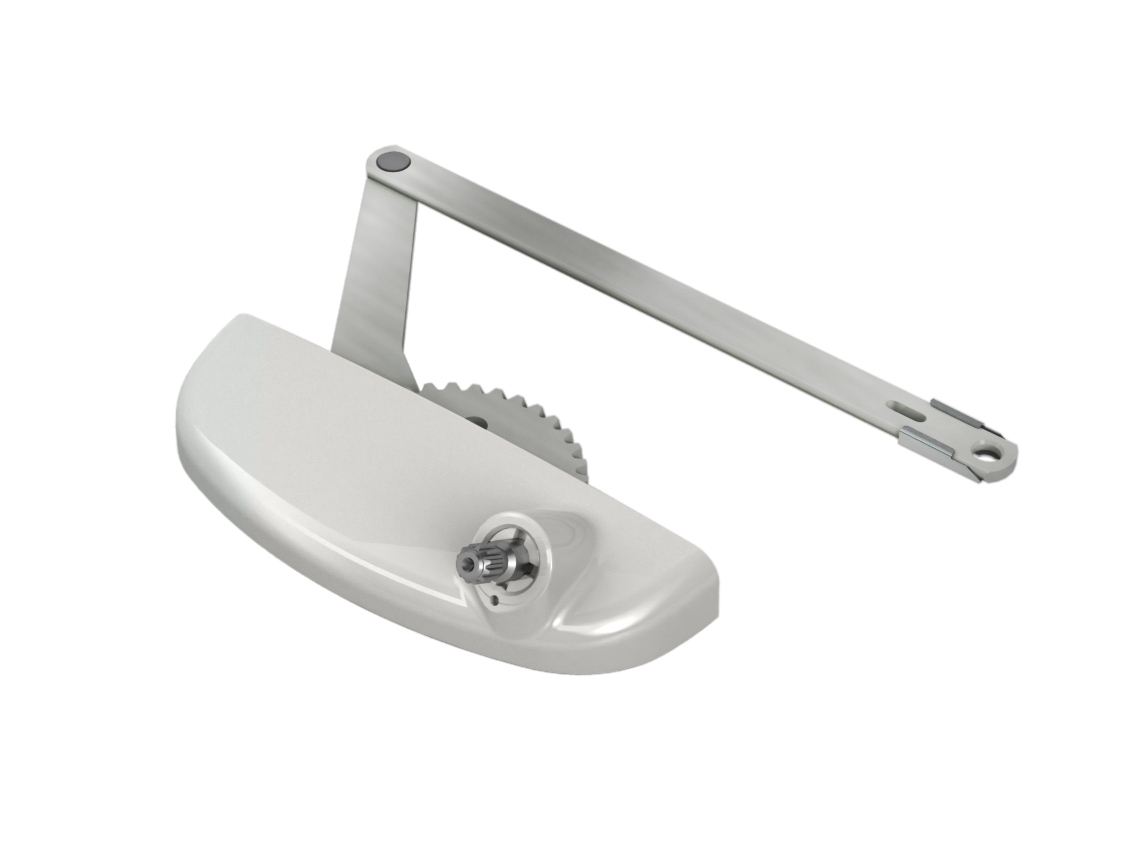

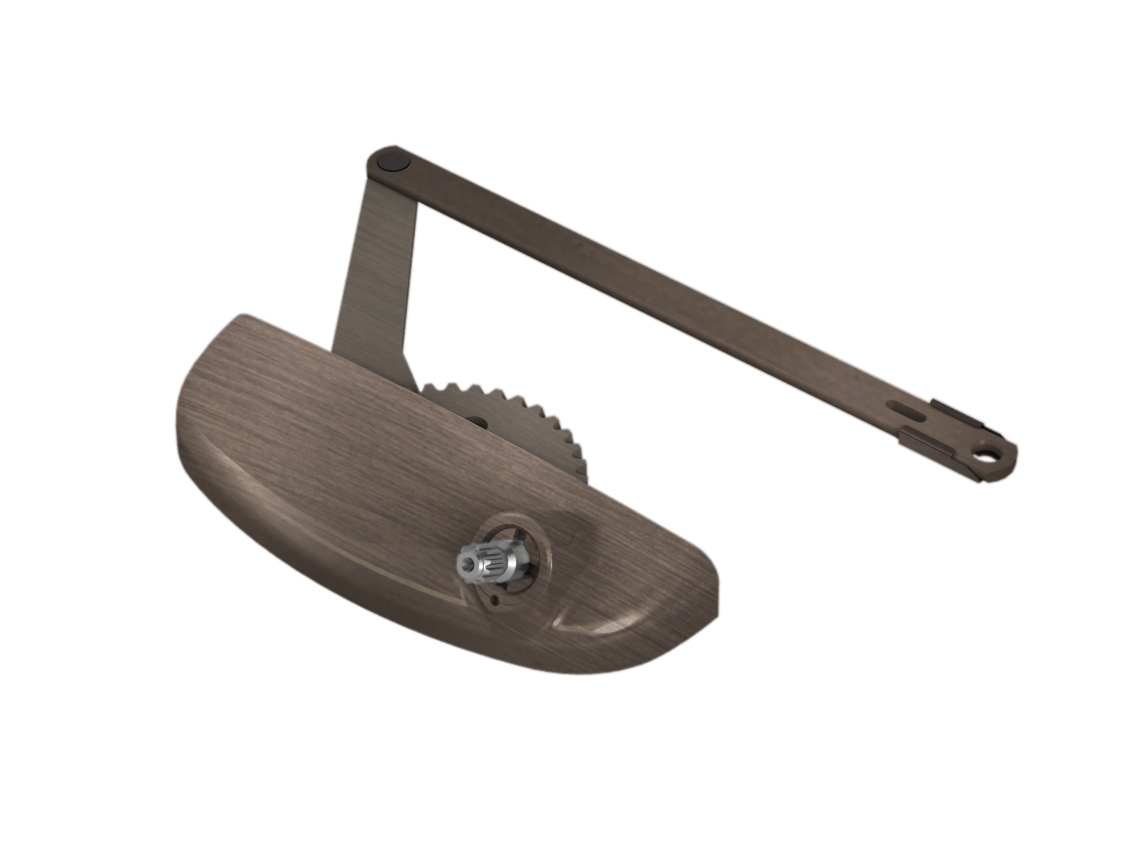

The Contour hardware system was designed for commercial casement and awning windows. Contour is composed of locks, hinges, and operators designed to compliment one another both aesthetically and functionally. You will notice the smooth design has a contemporary feel with softened edges that allow the hardware to blend seamlessly into the window. The Contour operator has increased load carrying capacity and 22% more operating leverage for ease of operation.
product highlights
- Design improves ease of operation and supports ADA force requirements
- Integrated gasket enhances weather resistance
- Concealed fasteners improve interior aesthetics
- Handle is offset to provide increased clearance of side extension jambs technical specifications
- Casement sash load carrying capacity is 100 lbs. (36” X 60”)
- AAMA Architectural Window rating for load and cycle life
- Stainless steel operator arms available
- Operators are available in awning, straight arm, and dyad
Specifications
| Part # | Model | Track | Length | Mount Type |
|---|---|---|---|---|
| 2127152 | Single Arm | Euro Slider | 14" | Face Mount |
| 2127153 | Single Arm | Euro Slider | 14" | Face Mount |
| 2127154 | Single Arm | SST Roller | 14" | Face Mount |
| 2127155 | Single Arm | SST Roller | 14" | Face Mount |
| 2127160 | Single Arm | Euro Slider | 14" | Face Mount |
| 2127161 | Single Arm | Euro Slider | 14" | Face Mount |
| 2127162 | Single Arm | SST Roller | 14" | Face Mount |
| 2127163 | Single Arm | SST Roller | 14" | Face Mount |
| 2127168 | Single Arm | Euro Slider | 14" | Face Mount |
| 2127169 | Single Arm | Euro Slider | 14" | Face Mount |
| 2127170 | Single Arm | SST Roller | 14" | Face Mount |
| 2127171 | Single Arm | SST Roller | 14" | Face Mount |
| 2127174 | Single Arm | SST Roller | 14" | Face Mount |
| 2127175 | Single Arm | SST Roller | 14" | Face Mount |
| 2127178 | Single Arm | SST Roller | 14" | Face Mount |
| 2127179 | Single Arm | SST Roller | 14" | Face Mount |
| 2127182 | Single Arm | SST Roller | 14" | Face Mount |
| 2127183 | Single Arm | SST Roller | 14" | Face Mount |
| 2127188 | Single Arm | SST Roller | 14" | Face Mount |
| 2127189 | Single Arm | SST Roller | 14" | Face Mount |
| 2127192 | Single Arm | SST Roller | 14" | Face Mount |
| 2127193 | Single Arm | SST Roller | 14" | Face Mount |
| 2127196 | Single Arm | SST Roller | 14" | Face Mount |
| 2127197 | Single Arm | SST Roller | 14" | Face Mount |
| 2127204 | Single Arm | SST Roller | 14" | Face Mount |
| 2127205 | Single Arm | SST Roller | 14" | Face Mount |
| 2127208 | Single Arm | SST Roller | 14" | Face Mount |
| 2127209 | Single Arm | SST Roller | 14" | Face Mount |
| 2127210 | Single Arm | Euro Slider | 14" | Face Mount |
| 2127211 | Single Arm | Euro Slider | 14" | Face Mount |
| 2127262 | Single Arm | Euro Slider | 8" | Face Mount |
| 2127263 | Single Arm | Euro Slider | 8" | Face Mount |
| 2127264 | Single Arm | SST Roller | 8" | Face Mount |
| 2127265 | Single Arm | SST Roller | 8" | Face Mount |
| 2127270 | Single Arm | Euro Slider | 8" | Face Mount |
| 2127271 | Single Arm | Euro Slider | 8" | Face Mount |
| 2127272 | Single Arm | SST Roller | 8" | Face Mount |
| 2127273 | Single Arm | SST Roller | 8" | Face Mount |
| 2127278 | Single Arm | Euro Slider | 8" | Face Mount |
| 2127279 | Single Arm | Euro Slider | 8" | Face Mount |
| 2127280 | Single Arm | SST Roller | 8" | Face Mount |
| 2127281 | Single Arm | SST Roller | 8" | Face Mount |
| 2127284 | Single Arm | SST Roller | 8" | Face Mount |
| 2127285 | Single Arm | SST Roller | 8" | Face Mount |
| 2127288 | Single Arm | SST Roller | 8" | Face Mount |
| 2127289 | Single Arm | SST Roller | 8" | Face Mount |
| 2127292 | Single Arm | SST Roller | 8" | Face Mount |
| 2127293 | Single Arm | SST Roller | 8" | Face Mount |
| 2127296 | Single Arm | SST Roller | 8" | Face Mount |
| 2127297 | Single Arm | SST Roller | 8" | Face Mount |
| 2127300 | Single Arm | SST Roller | 8" | Face Mount |
| 2127301 | Single Arm | SST Roller | 8" | Face Mount |
| 2127304 | Single Arm | SST Roller | 8" | Face Mount |
| 2127305 | Single Arm | SST Roller | 8" | Face Mount |
| 2127312 | Single Arm | SST Roller | 8" | Face Mount |
| 2127313 | Single Arm | SST Roller | 8" | Face Mount |
| 2127316 | Single Arm | SST Roller | 8" | Face Mount |
| 2127317 | Single Arm | SST Roller | 8" | Face Mount |
| 2127318 | Single Arm | Euro Slider | 8" | Face Mount |
| 2127319 | Single Arm | Euro Slider | 8" | Face Mount |
| 2127338 | Single Arm | SST Roller | 8" | Face Mount |
| 2127339 | Single Arm | SST Roller | 8" | Face Mount |
| 2127345 | dyad | SST Roller | 9" | Face Mount |
| 2127360 | Single Arm | SST Roller | 14" | Face Mount |
| 2127373 | Single Arm | SST Roller | 8" | Face Mount |
| 2127374 | Single Arm | SST Roller | 8" | Face Mount |
| 2127375 | Single Arm | SST Roller | 8" | Face Mount |
| 2127378 | Single Arm | SST Roller | 8" | Face Mount |
| 2127382 | Single Arm | SST Roller | 8" | Face Mount |
| 2127383 | Single Arm | SST Roller | 8" | Face Mount |
| 2127389 | Pivot Shoe Operator | Euro Pivot Shoe | 11" | Face Mount |
| 2127390 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127393 | Pivot Shoe Operator | Euro Pivot Shoe | 11" | Face Mount |
| 2127394 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127397 | Pivot Shoe Operator | Euro Pivot Shoe | 11" | Face Mount |
| 2127398 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127400 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127402 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127404 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127406 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127409 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127415 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127417 | Pivot Shoe Operator | Pivot Shoe | 11" | Face Mount |
| 2127418 | Pivot Shoe Operator | Euro Pivot Shoe | 11" | Face Mount |
| 2127430 | Pivot Shoe Operator | Euro Pivot Shoe | 5.5" | Face Mount |
| 2127431 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127434 | Pivot Shoe Operator | Euro Pivot Shoe | 5.5" | Face Mount |
| 2127435 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127438 | Pivot Shoe Operator | Euro Pivot Shoe | 5.5" | Face Mount |
| 2127439 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127441 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127443 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127445 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127447 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127449 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127451 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127455 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127457 | Pivot Shoe Operator | Pivot Shoe | 5.5" | Face Mount |
| 2127458 | Pivot Shoe Operator | Euro Pivot Shoe | 5.5" | Face Mount |
| 2127467 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127468 | Pivot Shoe Operator | Euro Pivot Shoe | 9" | Face Mount |
| 2127469 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127472 | Pivot Shoe Operator | Euro Pivot Shoe | 9" | Face Mount |
| 2127473 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127476 | Pivot Shoe Operator | Euro Pivot Shoe | 9" | Face Mount |
| 2127477 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127479 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127481 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127483 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127485 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127488 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127489 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127493 | Pivot Shoe Operator | Pivot Shoe | 9" | Face Mount |
| 2127496 | Pivot Shoe Operator | Euro Pivot Shoe | 9" | Face Mount |
| 2127508 | Pivot Shoe Operator | Pivot Shoe | 7" | Face Mount |
| 2127510 | Pivot Shoe Operator | Pivot Shoe | 7" | Face Mount |
| 2127511 | Pivot Shoe Operator | Pivot Shoe | 7" | Face Mount |
